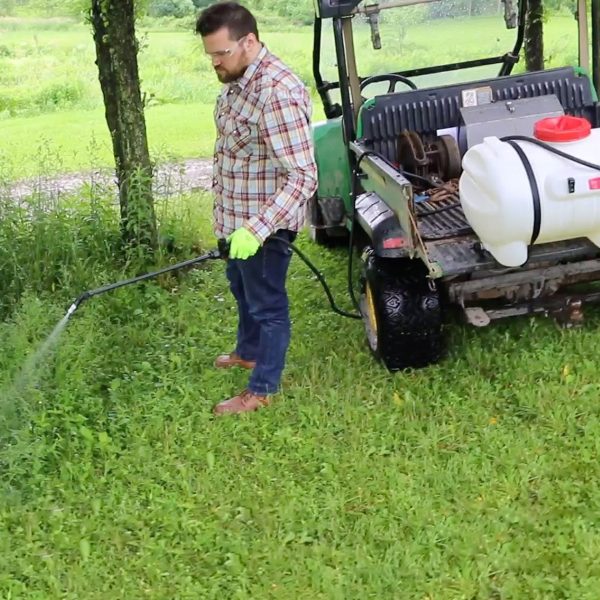

Chapin ATV Sprayer 97200E use

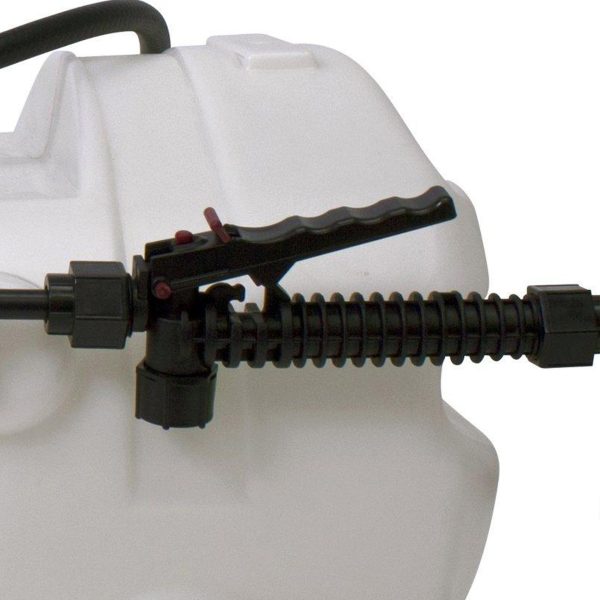

Chapin 97200E 15 Gallon ATV/UTV Sprayer shut-off handle

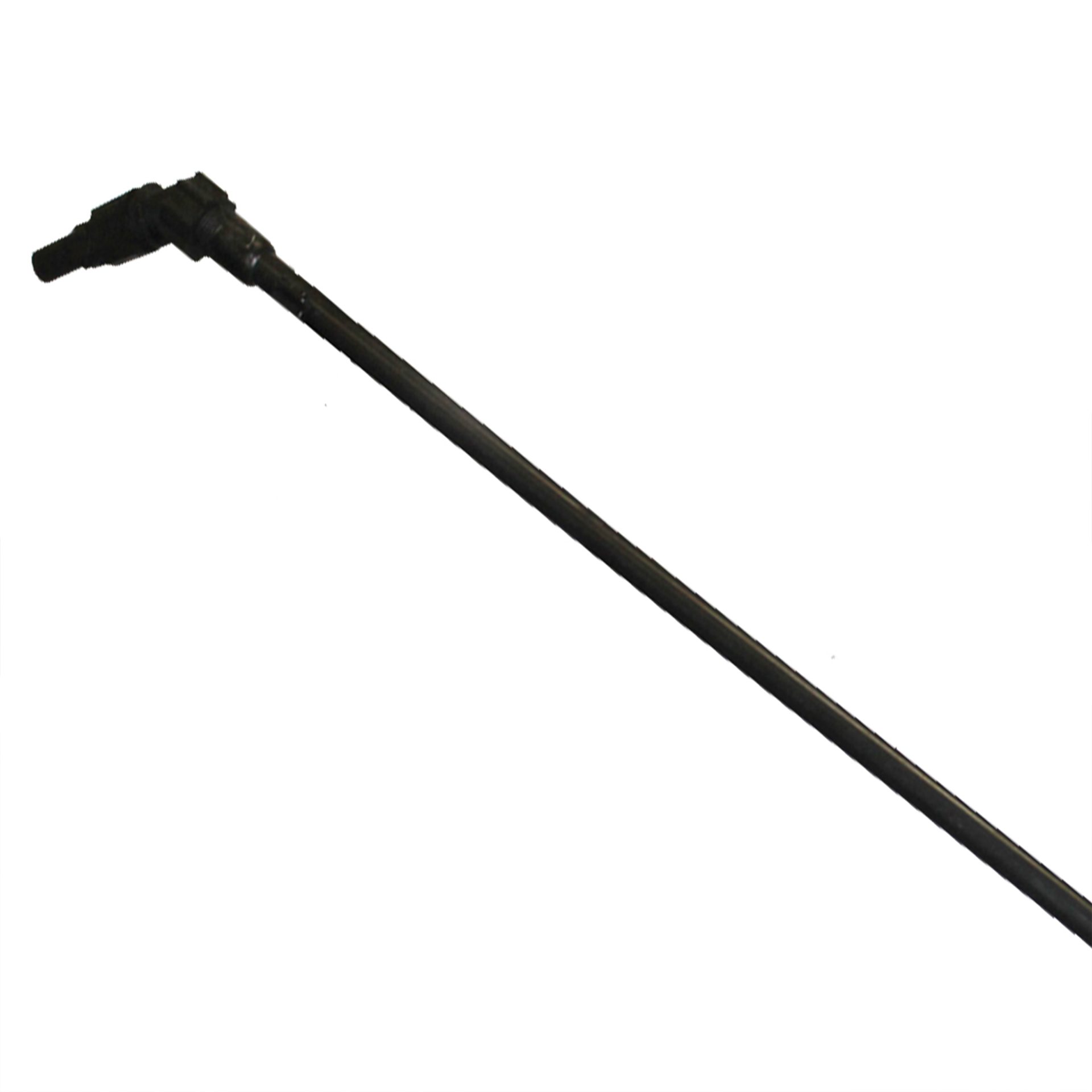

Chapin 97200E 15 Gallon ATV/UTV Sprayer wand and nozzle

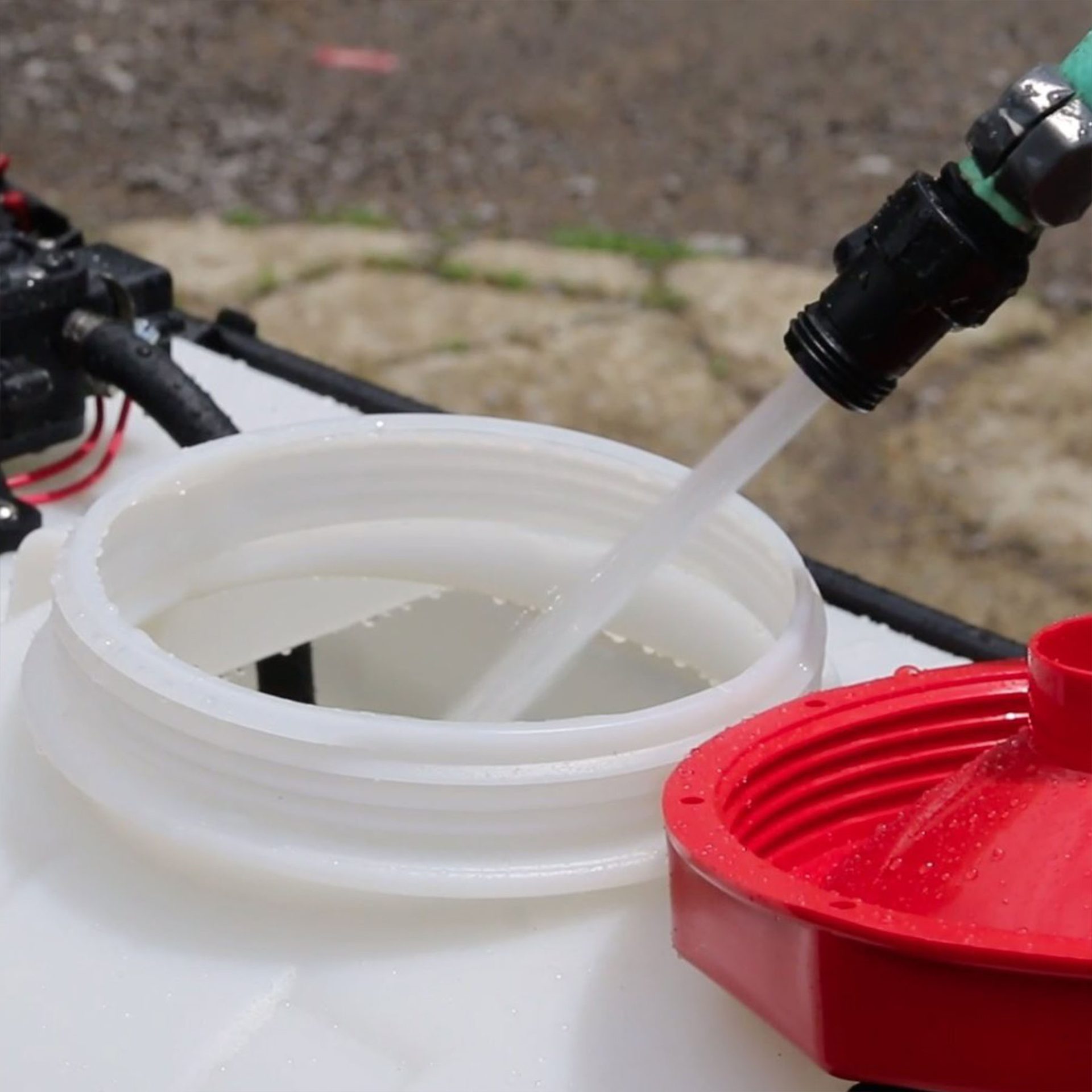

Chapin 97200E 15 Gallon ATV/UTV Sprayer filling with water

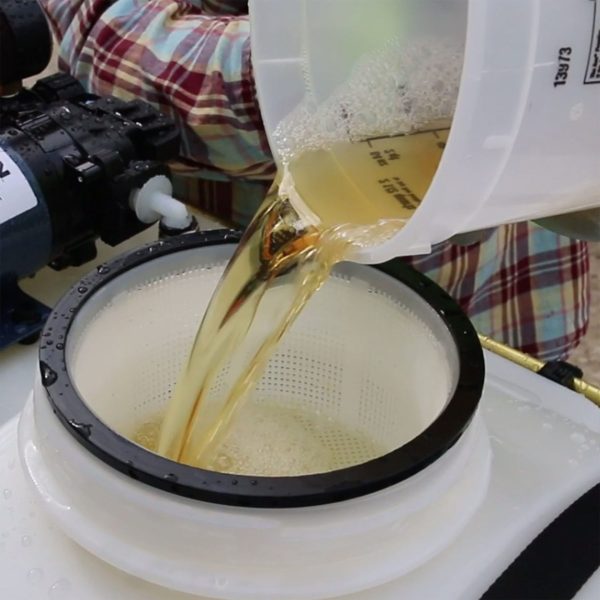

Chapin 97200E 15 Gallon ATV/UTV Sprayer filling with chemical
Chapin 97200E ATV Sprayer
Chapin ATV Sprayer 97200E use
Chapin 97200E 15 Gallon ATV/UTV Sprayer shut-off handle
Chapin 97200E 15 Gallon ATV/UTV Sprayer wand and nozzle
Chapin 97200E 15 Gallon ATV/UTV Sprayer filling with water
Chapin 97200E 15 Gallon ATV/UTV Sprayer filling with chemical

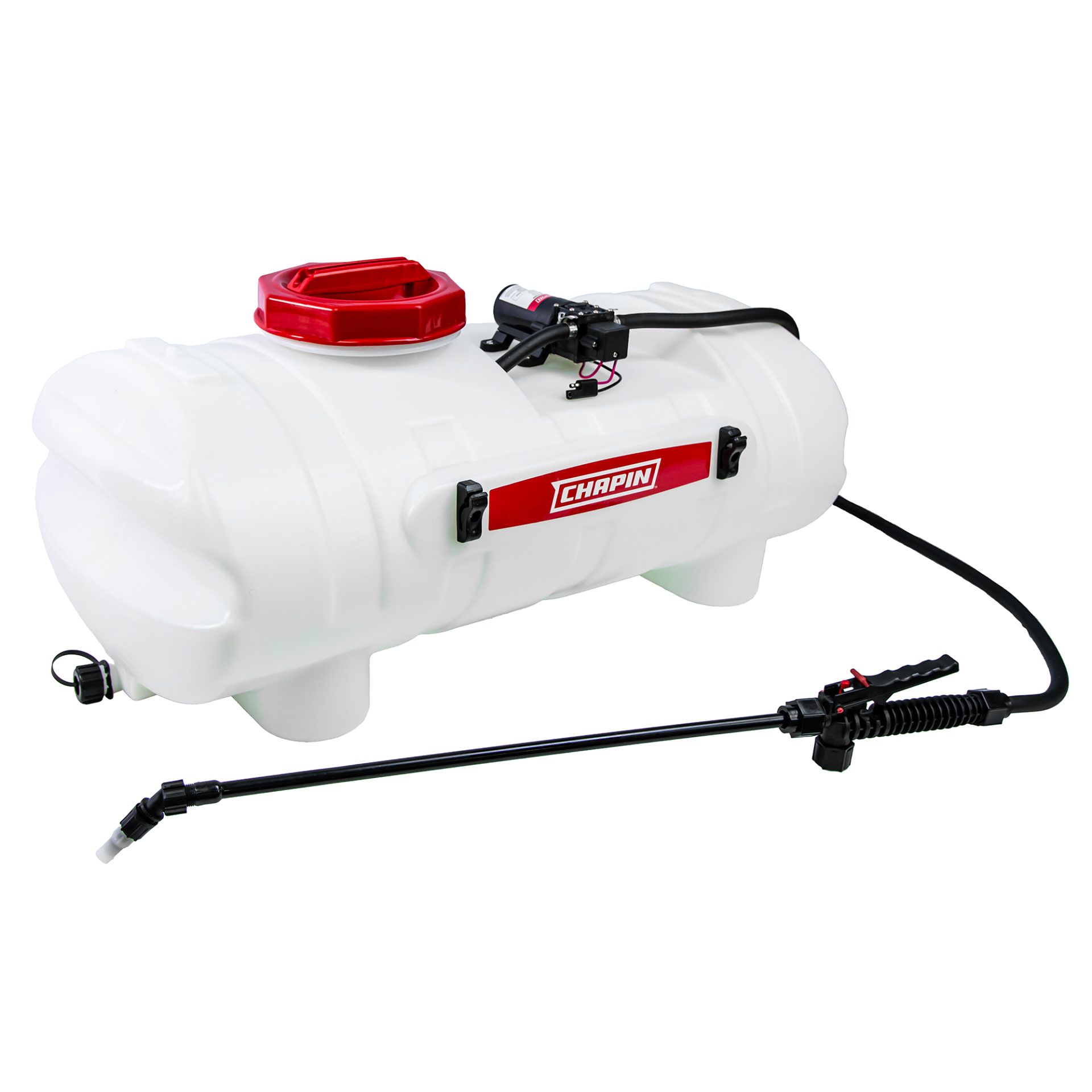

Chapin 97200E 15 Gallon 1 GPM, 12V ATV/UTV Sprayer

For lawn and garden applications around the farm, acreage, and land, the Chapin 97200E 15-gallon 12V deluxe EZ mount ATV spot sprayer quickly mounts to standard ATV, UTV or lawn tractors.

97200E

18 inch poly spray wand

180 inches of reinforced hose

Poly shut-off with serviceable filter

Buy now
Retailers
Details and features

Chapin 97200E 15 Gallon 1 GPM, 12V ATV/UTV Sprayer

For lawn and garden applications around the farm, acreage, and land, the Chapin 97200E 15-gallon 12V deluxe EZ mount ATV spot sprayer quickly mounts to standard ATV, UTV or lawn tractors. Its 15-gallon chemical-resistant tank has a 6-inch-wide tank opening for easy filling and mixing. The 1.0 GPM, 12V diaphragm pump with quick connect alligator clips delivers a maximum pressure of 60 PSI.

Spray comfortably with a comfort-grip shut-off and lock-on, and reach farther with a 15-foot reinforced hose and 19-inch extension wand. The seals and gaskets handle standard fertilizers, herbicides, and pesticides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Applications

Landscape & Professional Lawncare, Farm & Agriculture

Mounts to standard ATV, UTV and lawn tractors with quick-connect 1 GPM Chapin diaphragm pump

15 gallon, heavy-duty poly tank and the 6” wide tank opening

18 inch poly spray wand, 180 inches of reinforced hose, poly shut-off with serviceable filter, and lock-on feature

Chapin’s standard filter cap basket, in-tank filter and filter at shut-off for triple filtration

Standard nitrile seals handle standard pesticides, fertilizers, and weed killers

Requires Chapin 6430 or 6330 mounting kit (sold separately) for proper mounting of Chapin boom kits to standard ATV/UTV racks

Made in the USA with global materials and backed by US-based customer service and technical support

Backed by Chapin’s 1-year limited warranty

Related Parts

Chapin 97200E 15 Gallon 1 GPM, 12V ATV/UTV Sprayer

For lawn and garden applications around the farm, acreage, and land, the Chapin 97200E 15-gallon 12V deluxe EZ mount ATV spot sprayer quickly mounts to standard ATV, UTV or lawn tractors. Its 15-gallon chemical-resistant tank has a 6-inch-wide tank opening for easy filling and mixing. The 1.0 GPM, 12V diaphragm pump with quick connect alligator clips delivers a maximum pressure of 60 PSI.

Spray comfortably with a comfort-grip shut-off and lock-on, and reach farther with a 15-foot reinforced hose and 19-inch extension wand. The seals and gaskets handle standard fertilizers, herbicides, and pesticides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Additional Replacement Parts Available:

Suction Hose Assembly 6-9223
Inlet Strainer 6-8231
Nozzle Assembly 6-9075
Drain Plug 6-8325
Worm Gear Clamp 6-8300
Rubber Grommet 6-9204
Wand Clips 6-8324
Lead Wire 6-8320
Elbow Fitting 6-9224
Hose Assembly 6-9025

Please check your local retailer, or call our Order Team (1-800-444-3140), to check availability and purchase.

Chapin 6-8219 20 Inch Poly Spray Wand

Chapin 6-8219 20 Inch Poly Spray Wand

Chapin's 6-8219 20-inch poly wand fits many Chapin backpacks, GP, and tank sprayers.
Discover
Chapin 6-8138 Comfort-Grip Shut-Off Assembly

Chapin 6-8138 Comfort-Grip Shut-Off Assembly

Chapin’s 6-8138 comfort-grip shut-off assembly with lock-on feature gives you fatigue-free spraying.
Discover
Chapin 6-8146-1 6 Inch Filter Basket with Cap Assembly

Chapin 6-8146-1 6 Inch Filter Basket with Cap Assembly

Chapin's 6-8146-1 6 inch cap comes with the filter basket, seal, and cap as a...
Discover
Chapin 6-9206 1 GPM, 60 PSI Self-Priming Diaphragm Water Pump

Chapin 6-9206 1 GPM, 60 PSI Self-Priming Diaphragm Pump

The Chapin 6-9206 is a 12V/1 GPM diaphragm pump pushes up to 60 PSI of...
Discover
Specification

Chapin 97200E 15 Gallon 1 GPM, 12V ATV/UTV Sprayer

For lawn and garden applications around the farm, acreage, and land, the Chapin 97200E 15-gallon 12V deluxe EZ mount ATV spot sprayer quickly mounts to standard ATV, UTV or lawn tractors. Its 15-gallon chemical-resistant tank has a 6-inch-wide tank opening for easy filling and mixing. The 1.0 GPM, 12V diaphragm pump with quick connect alligator clips delivers a maximum pressure of 60 PSI.

Spray comfortably with a comfort-grip shut-off and lock-on, and reach farther with a 15-foot reinforced hose and 19-inch extension wand. The seals and gaskets handle standard fertilizers, herbicides, and pesticides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Model Number 97200E
Product Category ATV & Large Capacity Sprayers
Applications Landscape & Professional Lawncare, Farm & Agriculture
Warranty 1 year limited
Country of Origin United States
Dimensions (LxWxH) 31.75x17.75x13.25
Weight 14.5 pounds
Assembly Required Yes
Tank Size 15 gallons
Tank Material Poly
Pump Type Diaphragm
Seals Nitrile
Nozzle Material Brass/Poly
Nozzle Patterns Adjustable Brass, Poly Cone, Poly Fan
Nozzle Included Yes
Number of Nozzles 3
Filter Triple Filtration
Filter Cap Size 6 inches
Lock-on Feature Yes
Shut-off Material Poly
Hose Length 180 inches
Hose Material Reinforced PVC
Wand Length 18 inches
Wand Material Poly
Operating Pressure 40-60 PSI
Sprayer Rate 0.4-0.5 GPM
Motor 1 GPM
Downloads

Chapin 97200E 15 Gallon 1 GPM, 12V ATV/UTV Sprayer

For lawn and garden applications around the farm, acreage, and land, the Chapin 97200E 15-gallon 12V deluxe EZ mount ATV spot sprayer quickly mounts to standard ATV, UTV or lawn tractors. Its 15-gallon chemical-resistant tank has a 6-inch-wide tank opening for easy filling and mixing. The 1.0 GPM, 12V diaphragm pump with quick connect alligator clips delivers a maximum pressure of 60 PSI.

Spray comfortably with a comfort-grip shut-off and lock-on, and reach farther with a 15-foot reinforced hose and 19-inch extension wand. The seals and gaskets handle standard fertilizers, herbicides, and pesticides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Chapin 97200E 15 Gallon ATV/UTV Sprayer Product Manual

Download
Safety & Usage for

Chapin 97200E 15 Gallon 1 GPM, 12V ATV/UTV Sprayer

For lawn and garden applications around the farm, acreage, and land, the Chapin 97200E 15-gallon 12V deluxe EZ mount ATV spot sprayer quickly mounts to standard ATV, UTV or lawn tractors. Its 15-gallon chemical-resistant tank has a 6-inch-wide tank opening for easy filling and mixing. The 1.0 GPM, 12V diaphragm pump with quick connect alligator clips delivers a maximum pressure of 60 PSI.

Spray comfortably with a comfort-grip shut-off and lock-on, and reach farther with a 15-foot reinforced hose and 19-inch extension wand. The seals and gaskets handle standard fertilizers, herbicides, and pesticides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

  • Spray distance is dependent on many factors such as adjusted nozzle orifice size, tank pressure, wind interference and angle of inclination. Spray distances may vary based on user’s specific application.
  • Multiple chemicals in one sprayer can cause cross contamination, even if you clean your sprayer after each use.
  • Do not store chemicals in your sprayer when not in use
  • Always wear eye protection. Do not spray during windy conditions. Clean sprayer thoroughly after each use. Before using read and understand chemical manufacturer’s instructions and warnings as well as those above. FAILURE TO HEED ALL SAFETY WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS BODILY INJURY OR PROPERTY DAMAGE.
