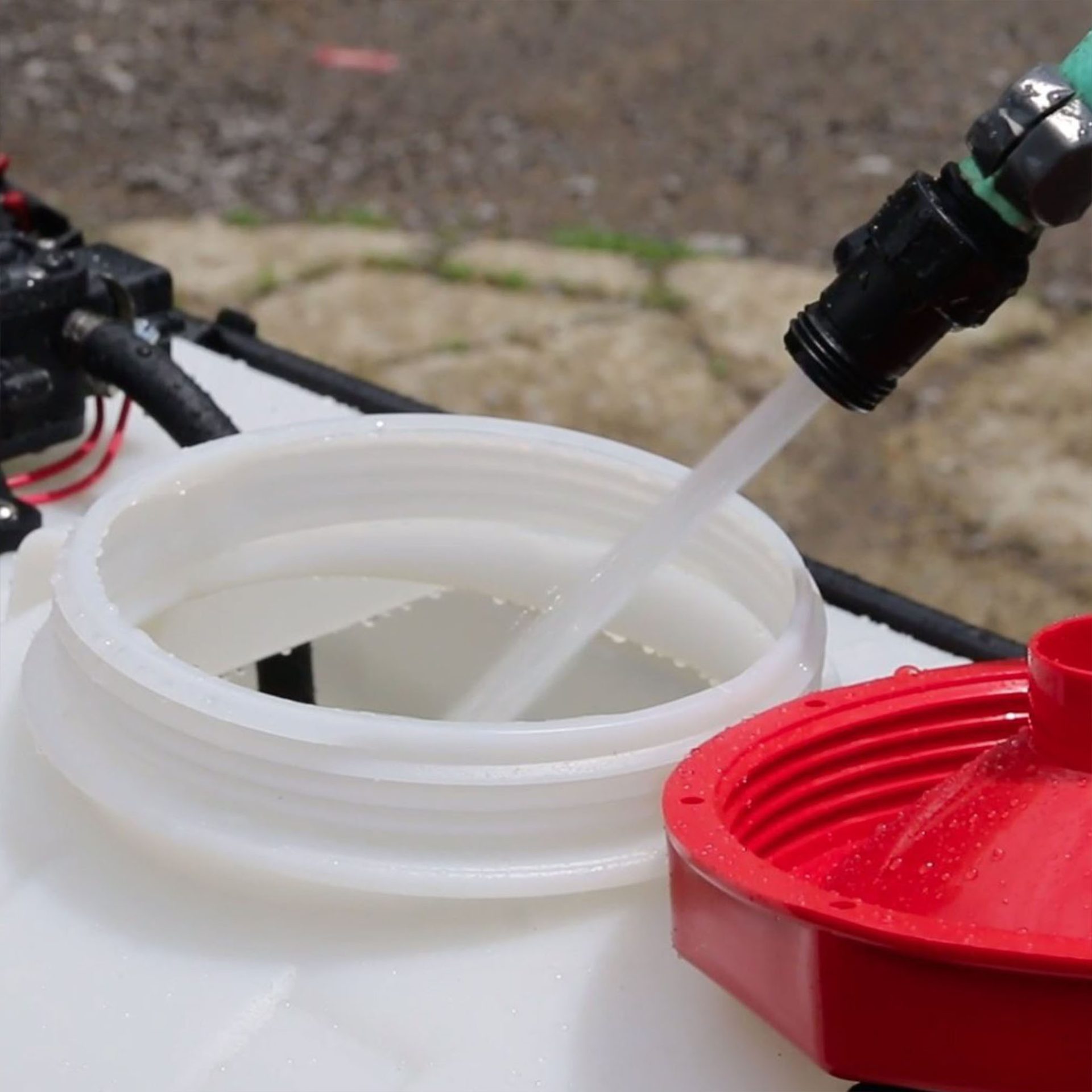

Filling the Chapin 97701E tow behind sprayer with water

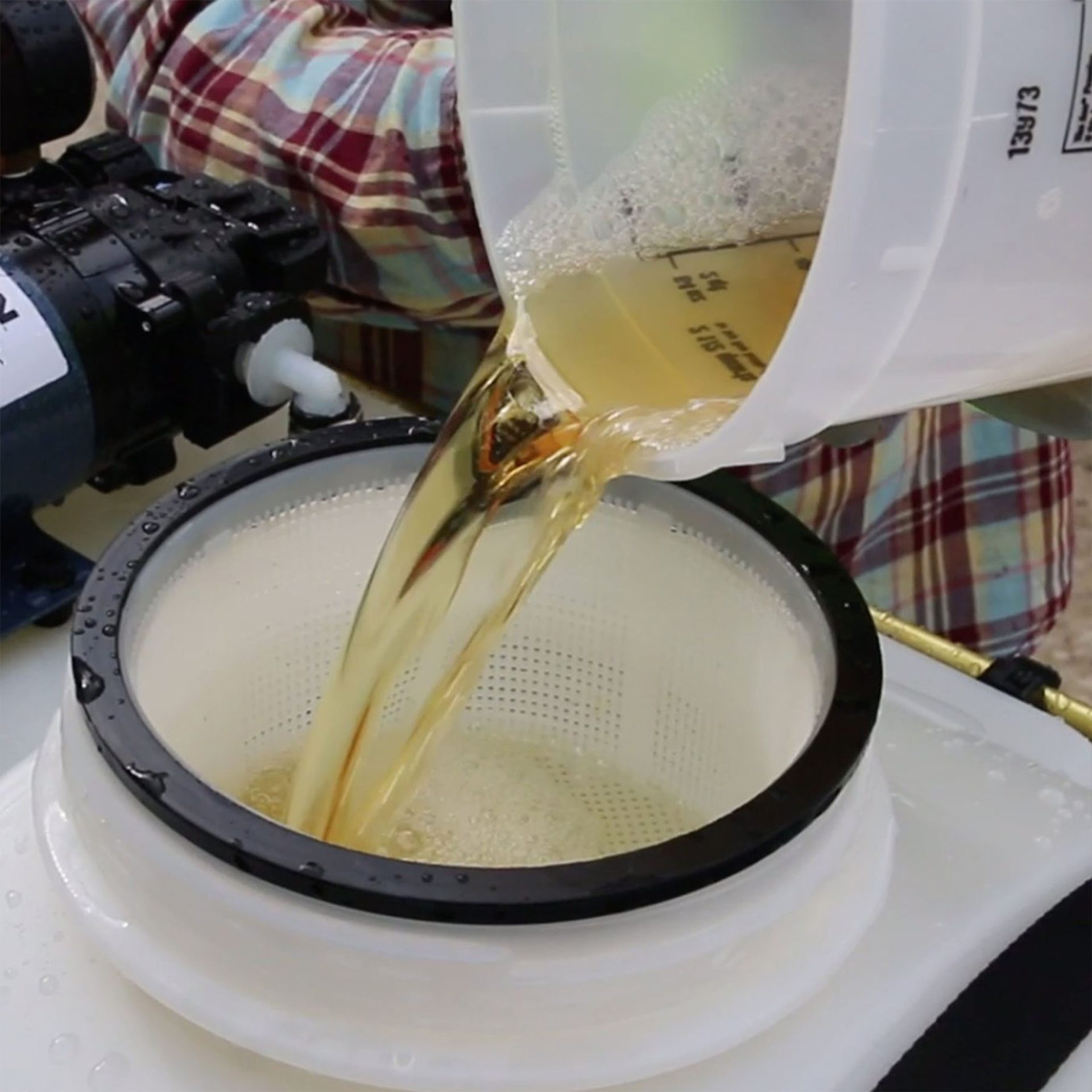

Filling the Chapin 97701E tow behind sprayer with chemicals
Chapin 97701E Tow Behind ATV Sprayer
Filling the Chapin 97701E tow behind sprayer with water
Filling the Chapin 97701E tow behind sprayer with chemicals

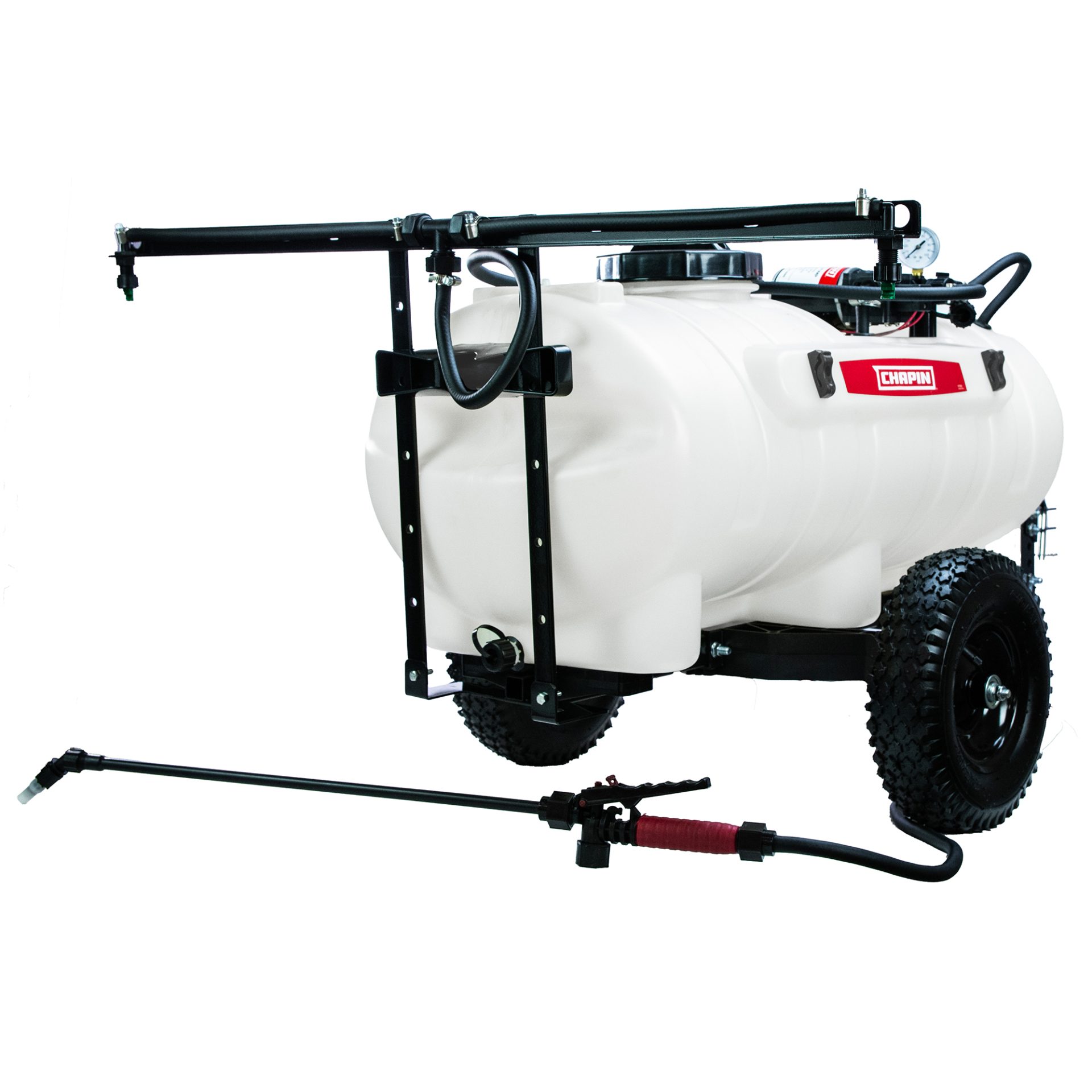

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer with Trailer

The Chapin 97701E 25-gallon tow-behind ATV/UTV sprayer is configured to hook up to a standard hitch on an ATV, UTV or lawn tractor.

97701E

Fits standard ATV, UTV or lawn tractors or tow behind on a powder-coated steel frame

3 spray nozzles: poly cone, adjustable brass, and poly fan, all included

Chemical-resistant seals handle tough pesticides, fertilizers, and weed killers

Buy now
Retailers
Details and features

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer with Trailer

The Chapin 97701E 25-gallon tow-behind ATV/UTV sprayer is configured to hook up to a standard hitch on an ATV, UTV or lawn tractor. It features a 25-gallon chemical-resistant tank with a 6-inch wide tank opening to easily fill it. There is a filter basket included with cap to catch any debris while it’s being filled. The 2.5 GPM Chapin diaphragm pump quick-connects with alligator clips for easy install.

Spray comfortably and reach easily with a comfort-grip shut-off and lock-on, a 15-foot reinforced hose and 19 inch extension wand. The seals and gaskets are chemical-resistant to hold up to professional fertilizers, pesticides, and herbicides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Trailer and hitch are included. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Applications

Landscape & Professional Lawncare, Farm & Agriculture

EZ mount: fits standard ATV, UTV or lawn tractors or tow behind on a powder-coated steel frame with tow hitch and 12 inch pneumatic tires

25 gallon, heavy-duty poly tank and the 6” wide tank opening

20 inch poly spray wand, 180 inches of reinforced hose, poly shut-off with serviceable filter, and lock-on feature

3 spray nozzles: poly cone, adjustable brass, and poly fan, all included

Chapin’s standard filter cap basket, in-tank filter and filter at shut-off for triple filtration

Chemical-resistant seals handle tough pesticides, fertilizers, and weed killers

Requires Chapin 6430 or 6330 mounting kit (sold separately) for proper mounting of Chapin boom kits to standard ATV/UTV racks

Made in the USA with global materials and backed by US-based customer service and technical support

Backed by Chapin’s 1-year limited warranty

Related Parts

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer with Trailer

The Chapin 97701E 25-gallon tow-behind ATV/UTV sprayer is configured to hook up to a standard hitch on an ATV, UTV or lawn tractor. It features a 25-gallon chemical-resistant tank with a 6-inch wide tank opening to easily fill it. There is a filter basket included with cap to catch any debris while it’s being filled. The 2.5 GPM Chapin diaphragm pump quick-connects with alligator clips for easy install.

Spray comfortably and reach easily with a comfort-grip shut-off and lock-on, a 15-foot reinforced hose and 19 inch extension wand. The seals and gaskets are chemical-resistant to hold up to professional fertilizers, pesticides, and herbicides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Trailer and hitch are included. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Additional Replacement Parts Available:

Pump Assembly 6-9202
Manifold Assembly 6-9221
Inlet Strainer 6-8231
Nozzle Assembly 6-9075
Drain Plug 6-8325
Worm Gear Clamp 6-8300
Rubber Grommet 6-9204
Wand Clips 6-8324
Lead Wire 6-8320
Connection Hardware 6-9100
Elbow Fitting 6-9224
Tire/Wheel Assembly 6-9123
Hitch Bracket Assembly 6-9124
Hose Assembly 6-9025

Please check your local retailer, or call our Order Team (1-800-444-3140), to check availability and purchase.

Chapin 6-8138 Comfort-Grip Shut-Off Assembly

Chapin 6-8138 Comfort-Grip Shut-Off Assembly

Chapin’s 6-8138 comfort-grip shut-off assembly with lock-on feature gives you fatigue-free spraying.
Discover
Chapin 6-9138 2.5 GPM, 60 PSI Self-Priming Diaphragm Water Pump

Chapin 6-9138 2.5 GPM, 60 PSI Self-Priming Diaphragm Pump

Move chemicals or water easily with the Chapin 6-9138 2.5 GPM/12V diaphragm pump.
Discover
Chapin 6-8219 20 Inch Poly Spray Wand

Chapin 6-8219 20 Inch Poly Spray Wand

Chapin's 6-8219 20-inch poly wand fits many Chapin backpacks, GP, and tank sprayers.
Discover
Chapin 6-8146-1 6 Inch Filter Basket with Cap Assembly

Chapin 6-8146-1 6 Inch Filter Basket with Cap Assembly

Chapin's 6-8146-1 6 inch cap comes with the filter basket, seal, and cap as a...
Discover
Specification

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer with Trailer

The Chapin 97701E 25-gallon tow-behind ATV/UTV sprayer is configured to hook up to a standard hitch on an ATV, UTV or lawn tractor. It features a 25-gallon chemical-resistant tank with a 6-inch wide tank opening to easily fill it. There is a filter basket included with cap to catch any debris while it’s being filled. The 2.5 GPM Chapin diaphragm pump quick-connects with alligator clips for easy install.

Spray comfortably and reach easily with a comfort-grip shut-off and lock-on, a 15-foot reinforced hose and 19 inch extension wand. The seals and gaskets are chemical-resistant to hold up to professional fertilizers, pesticides, and herbicides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Trailer and hitch are included. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Model Number 97701E
Product Category ATV & Large Capacity Sprayers
Applications Landscape & Professional Lawncare, Farm & Agriculture
Warranty 1 year limited
Country of Origin United States
Dimensions (LxWxH) 44x20x24
Weight 60 pounds
Assembly Required Yes
Tank Size 25 gallons
Tank Material Poly
Pump Type Diaphragm
Seals Nitrile/Chemical-resistant
Nozzle Material Brass/Poly
Nozzle Patterns Adjustable Brass, Poly Cone, Poly Fan
Nozzle Included Yes
Number of Nozzles 3
Filter Triple Filtration
Filter Cap Size 6 inches
Lock-on Feature Yes
Shut-off Material Poly, Cushioned Grip
Hose Length 180 inches
Hose Material Reinforced PVC
Wand Length 20 inches
Wand Material Poly
Operating Pressure 40-60 PSI
Sprayer Rate 0.4-0.5 GPM
Motor 2.5 GPM
Downloads

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer with Trailer

The Chapin 97701E 25-gallon tow-behind ATV/UTV sprayer is configured to hook up to a standard hitch on an ATV, UTV or lawn tractor. It features a 25-gallon chemical-resistant tank with a 6-inch wide tank opening to easily fill it. There is a filter basket included with cap to catch any debris while it’s being filled. The 2.5 GPM Chapin diaphragm pump quick-connects with alligator clips for easy install.

Spray comfortably and reach easily with a comfort-grip shut-off and lock-on, a 15-foot reinforced hose and 19 inch extension wand. The seals and gaskets are chemical-resistant to hold up to professional fertilizers, pesticides, and herbicides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Trailer and hitch are included. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer with Trailer Product Manual

Download

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer Trailer Kit Product Manual

Download
Safety & Usage for

Chapin 97701E 25-gallon 2.5 GPM, 12V Tow-Behind ATV/UTV Sprayer with Trailer

The Chapin 97701E 25-gallon tow-behind ATV/UTV sprayer is configured to hook up to a standard hitch on an ATV, UTV or lawn tractor. It features a 25-gallon chemical-resistant tank with a 6-inch wide tank opening to easily fill it. There is a filter basket included with cap to catch any debris while it’s being filled. The 2.5 GPM Chapin diaphragm pump quick-connects with alligator clips for easy install.

Spray comfortably and reach easily with a comfort-grip shut-off and lock-on, a 15-foot reinforced hose and 19 inch extension wand. The seals and gaskets are chemical-resistant to hold up to professional fertilizers, pesticides, and herbicides. Triple filtration is standard with a filter basket at the cap, in-tank filter and at the shut-off. Boom attachments are optional with an outlet for hookup. Trailer and hitch are included. Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

  • Spray distance is dependent on many factors such as adjusted nozzle orifice size, tank pressure, wind interference and angle of inclination. Spray distances may vary based on user’s specific application.
  • Multiple chemicals in one sprayer can cause cross contamination, even if you clean your sprayer after each use.
  • Do not store chemicals in your sprayer when not in use
  • Always wear eye protection. Do not spray during windy conditions. Clean sprayer thoroughly after each use. Before using read and understand chemical manufacturer’s instructions and warnings as well as those above. FAILURE TO HEED ALL SAFETY WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS BODILY INJURY OR PROPERTY DAMAGE.
