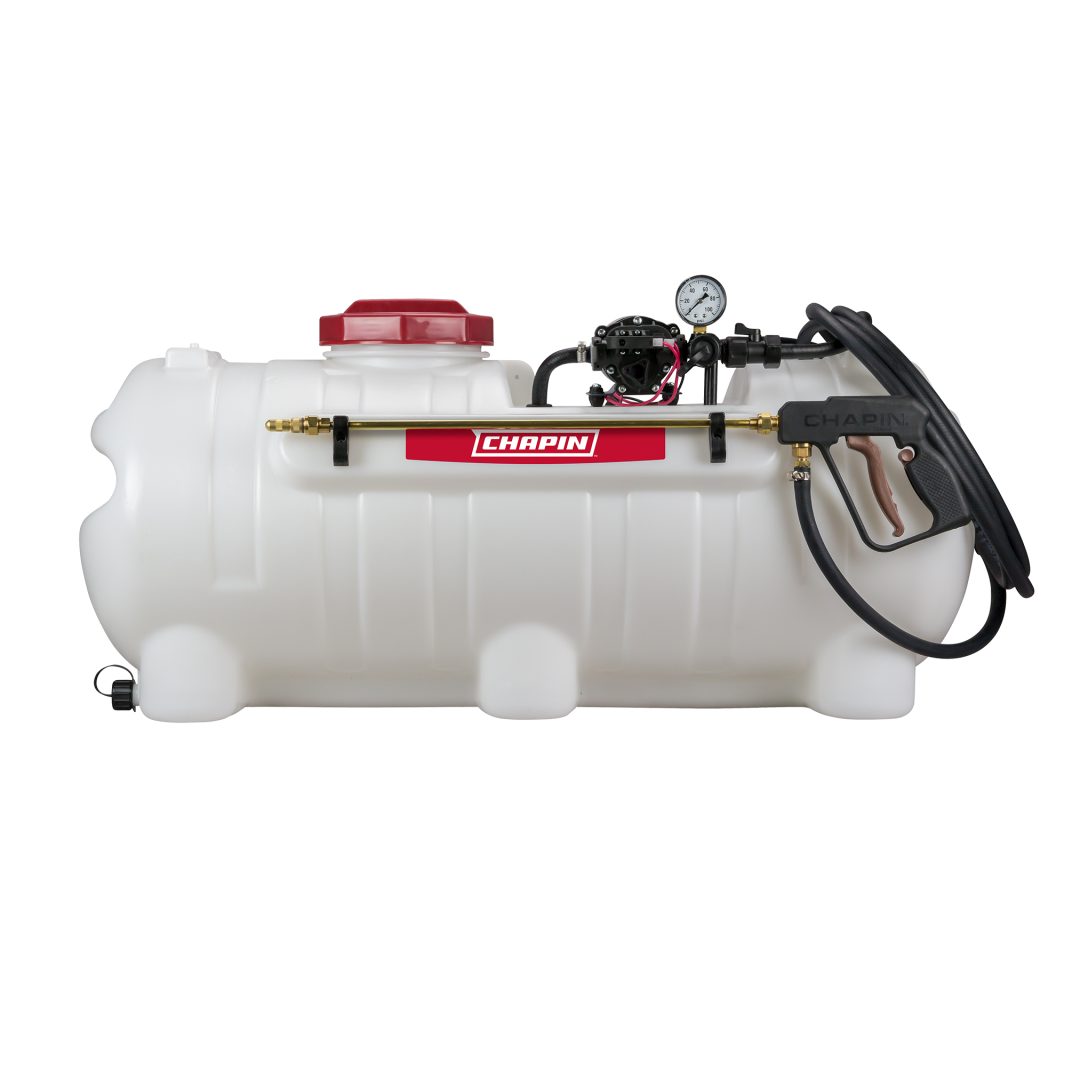

Chapin 97500E 25 Gallon Deluxe 12V ATV/UTV Sprayer

97500E

Fits standard ATV, UTV and lawn tractors

2.5 GPM Chapin diaphragm pump

25-gallon tank

Details and features

Chapin 97500E 25 Gallon Deluxe 12V ATV/UTV Sprayer

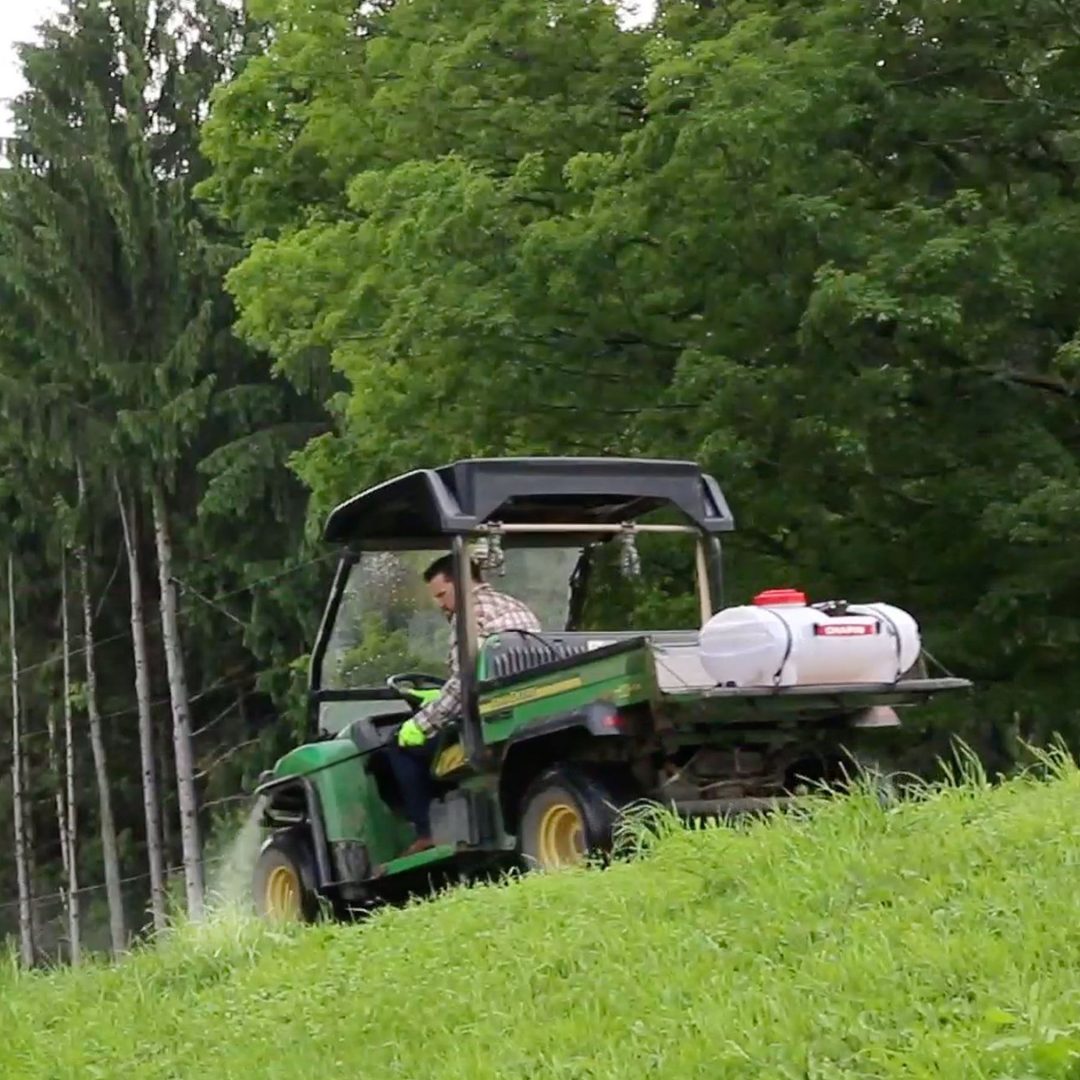

Chapin's 97500E 25-gallon 12V deluxe dripless EZ Mount ATV spot sprayer is configured to mount to a standard ATV, UTV or lawn tractor. Its 25-gallon heavy-duty, translucent, chemical resistant tank has a 6-inch wide tank opening for easy filling and mixing. Quickly connect the pump to your ATV battery with the included alligator clips. There’s a double filtration system and a pressure gauge (filter basket and shut-off filter). Add an optional 7-feet or 16-feet coverage spray boom kit to cover more ground (not included). Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

EZ mount: fits standard ATV, UTV and lawn tractors with quick-connect 2.5 GPM Chapin diaphragm pump; pumping isn’t required and no shafts or seals to replace on a diaphragm pump

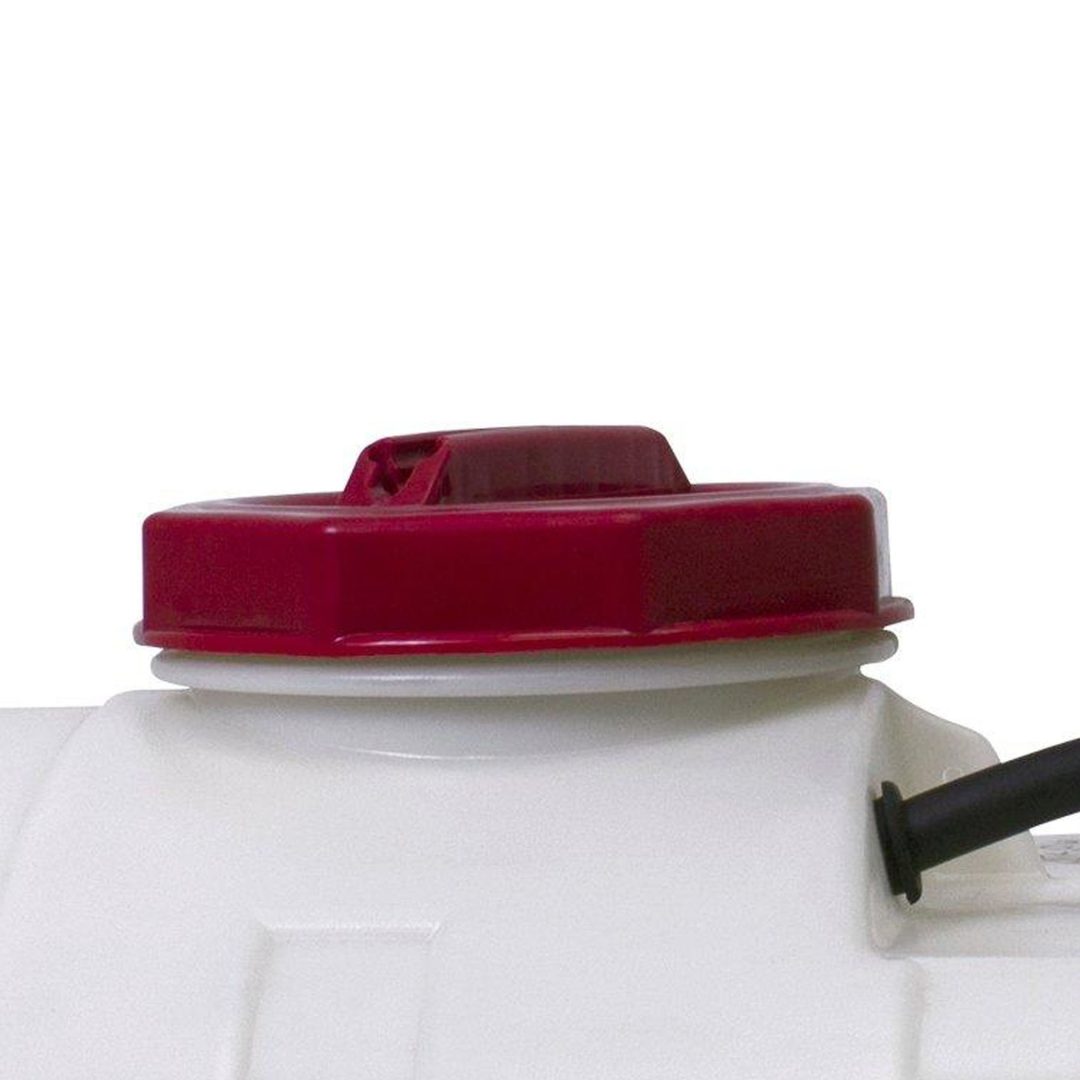

25-gallon tank: heavy-duty chemical-resistant, poly tank is translucent to see fill level and the 6-inch wide tank opening allows you to easily fill and clean the sprayer

Made in the USA with global materials: designed and produced in the USA with US-based customer service and technical support; backed by Chapin’s 1-year limited warranty

Components: 19-inch poly spray wand, 15-feet of reinforced hose to reach farther along foliage and fence lines; poly shut-off with serviceable filter and lock-on feature for comfort and less hand fatigue

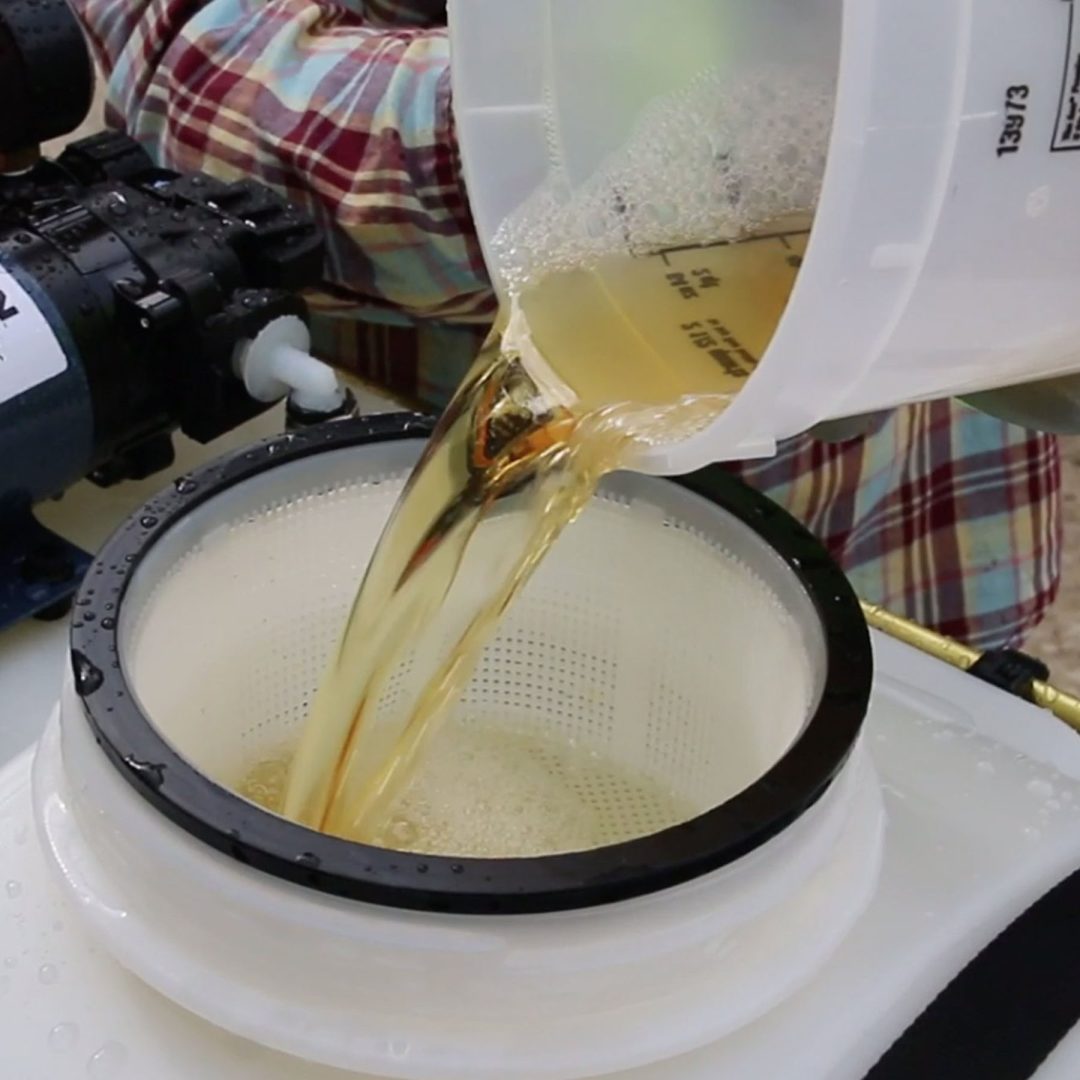

Filtration: Chapin’s standard filter cap basket and filter at shut-off so you’ll have less downtime disassembling to unclog you hose and wand

Chemical-resistant seals and gaskets: nitrile seals handle standard pesticides, fertilizers, weed killers so you can choose what you need depending on your application

Requires Chapin 6430 or 6330 mounting kit (sold separately) for proper mounting of Chapin boom kits to standard ATV/UTV racks

Specification

Chapin 97500E 25 Gallon Deluxe 12V ATV/UTV Sprayer

Chapin’s 97500E 25-gallon 12V deluxe dripless EZ Mount ATV spot sprayer is configured to mount to a standard ATV, UTV or lawn tractor. Its 25-gallon heavy-duty, translucent, chemical resistant tank has a 6-inch wide tank opening for easy filling and mixing. Quickly connect the pump to your ATV battery with the included alligator clips. There’s a double filtration system and a pressure gauge (filter basket and shut-off filter). Add an optional 7-feet or 16-feet coverage spray boom kit to cover more ground (not included). Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Model Number 97500E
Warranty 1 year limited
Tank Size & Material 25-gallons, Poly, 6" Tank opening & filter cap
Motor 1 GPM
Seals & Filters Chemical-resistant, 3 filters: In-tank, Shut-off, Filter Basket
Nozzles Poly, Adjustable Stream to Cone
Shut-off Material & Lock-on Feature Dripless
Hose Length & Material 180 in, Reinforced PVC
Wand Length & Material 19 in, Brass
Operating Pressure 40-60 PSI
Sprayer Rate 0.4-0.5 GPM
Downloads

Chapin 97500E 25 Gallon Deluxe 12V ATV/UTV Sprayer

Chapin’s 97500E 25-gallon 12V deluxe dripless EZ Mount ATV spot sprayer is configured to mount to a standard ATV, UTV or lawn tractor. Its 25-gallon heavy-duty, translucent, chemical resistant tank has a 6-inch wide tank opening for easy filling and mixing. Quickly connect the pump to your ATV battery with the included alligator clips. There’s a double filtration system and a pressure gauge (filter basket and shut-off filter). Add an optional 7-feet or 16-feet coverage spray boom kit to cover more ground (not included). Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

Product Manual

Download
Safety & Usage for

Chapin 97500E 25 Gallon Deluxe 12V ATV/UTV Sprayer

Chapin’s 97500E 25-gallon 12V deluxe dripless EZ Mount ATV spot sprayer is configured to mount to a standard ATV, UTV or lawn tractor. Its 25-gallon heavy-duty, translucent, chemical resistant tank has a 6-inch wide tank opening for easy filling and mixing. Quickly connect the pump to your ATV battery with the included alligator clips. There’s a double filtration system and a pressure gauge (filter basket and shut-off filter). Add an optional 7-feet or 16-feet coverage spray boom kit to cover more ground (not included). Made in the USA with global materials and backed by Chapin’s 1-year limited warranty.

  • Spray distance is dependent on many factors such as adjusted nozzle orifice size, tank pressure, wind interference and angle of inclination. Spray distances may vary based on user’s specific application.
  • Multiple chemicals in one sprayer can cause cross contamination, even if you clean your sprayer after each use.
  • Do not store chemicals in your sprayer when not in use
  • Always wear eye protection. Do not spray during windy conditions. Clean sprayer thoroughly after each use. Before using read and understand chemical manufacturer’s instructions and warnings as well as those above. FAILURE TO HEED ALL SAFETY WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS BODILY INJURY OR PROPERTY DAMAGE.
