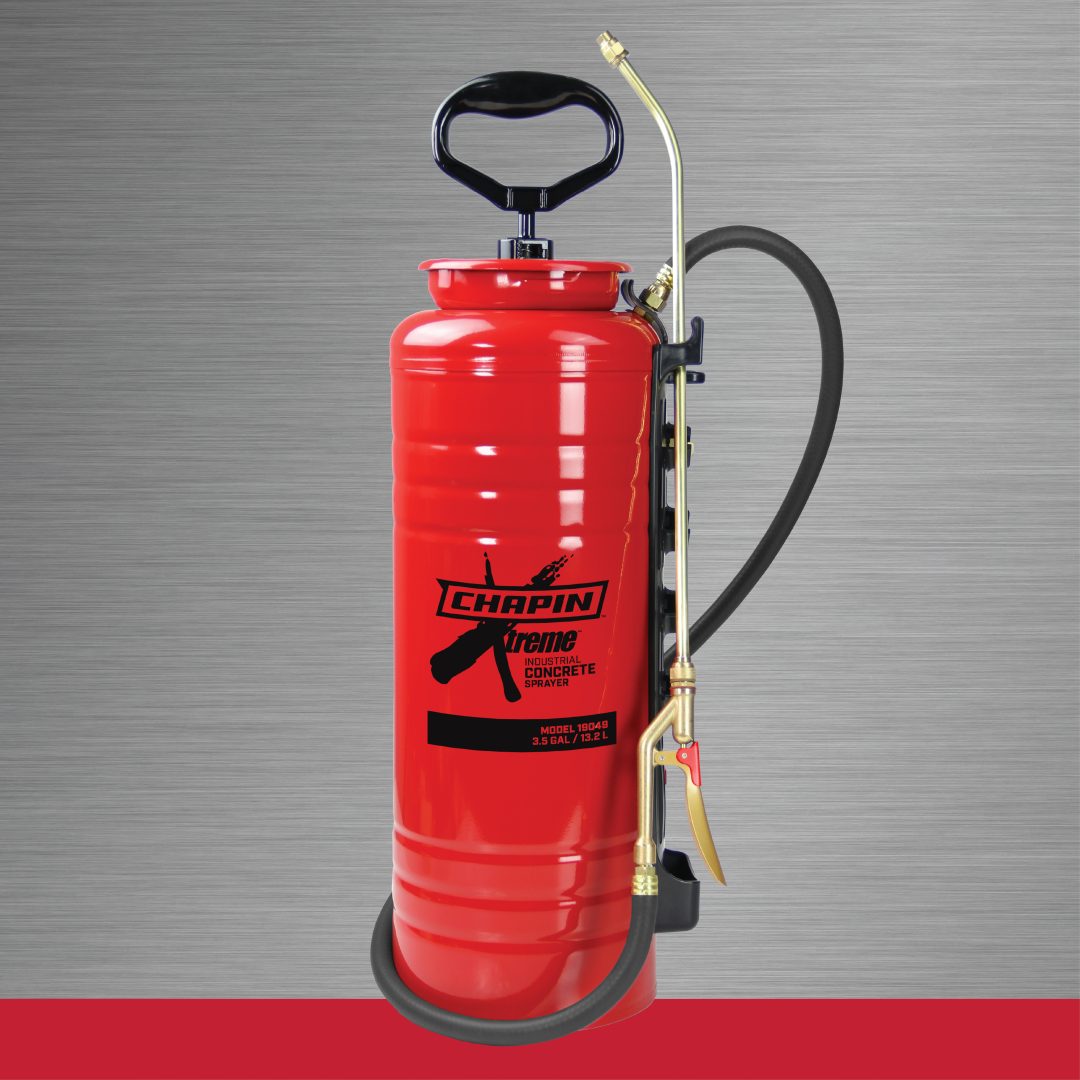

Chapin 1949X 3.5 Gallon Xtreme™ Concrete Pump Sprayer

1949X

Xtreme™ seals and gaskets for Acetone and VOC compliant industrial sealer applications

3.5-gallon Tri-Poxy™ steel metal tank

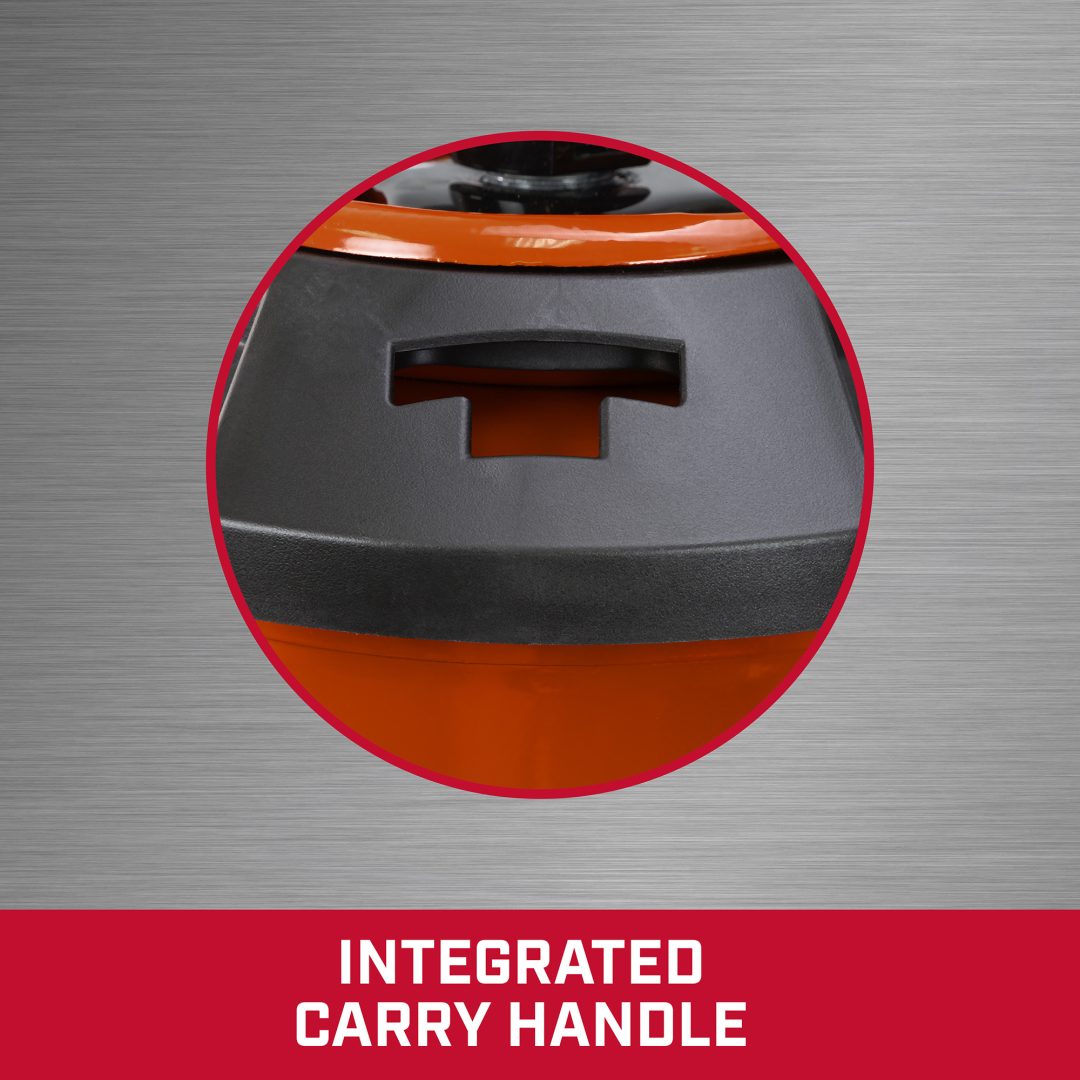

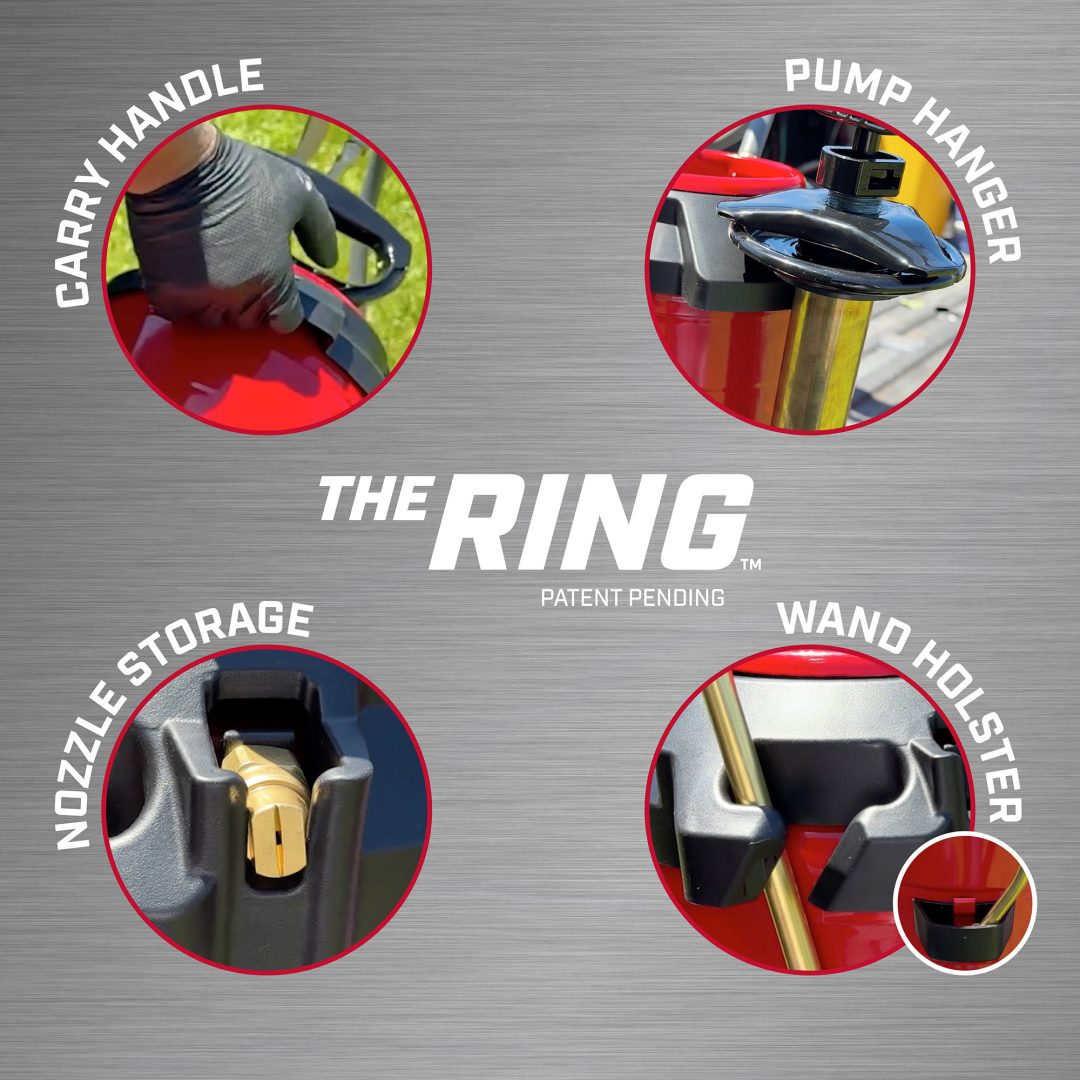

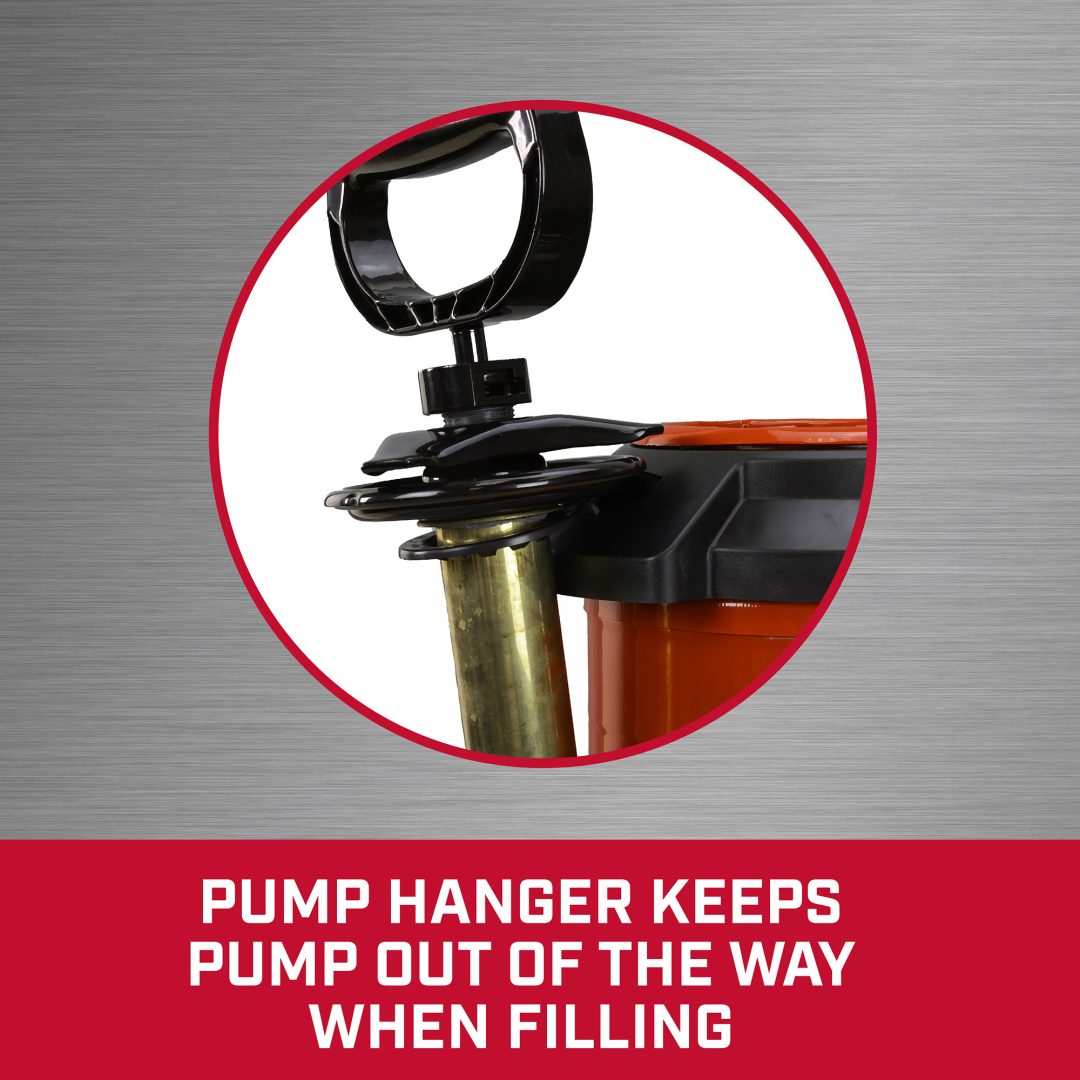

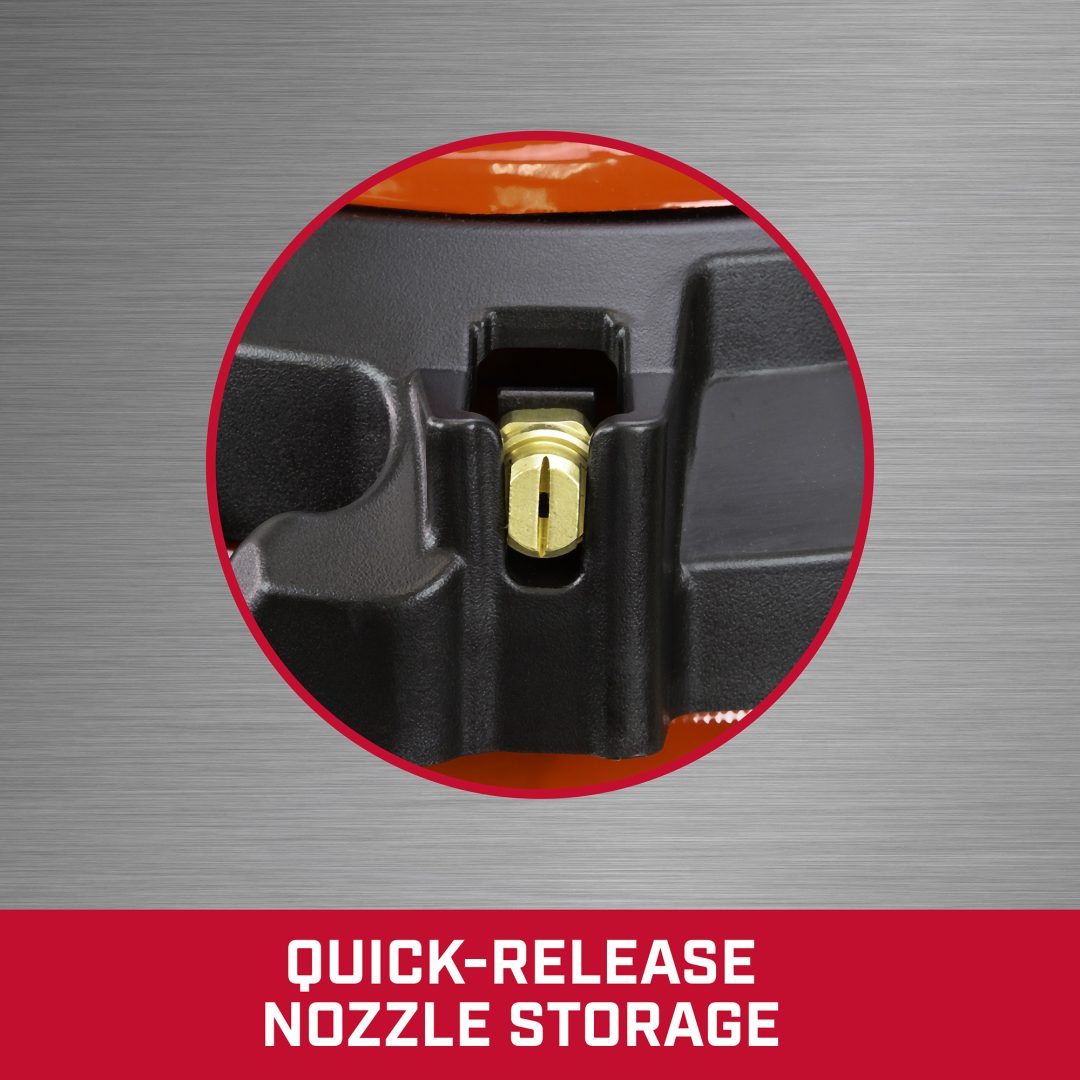

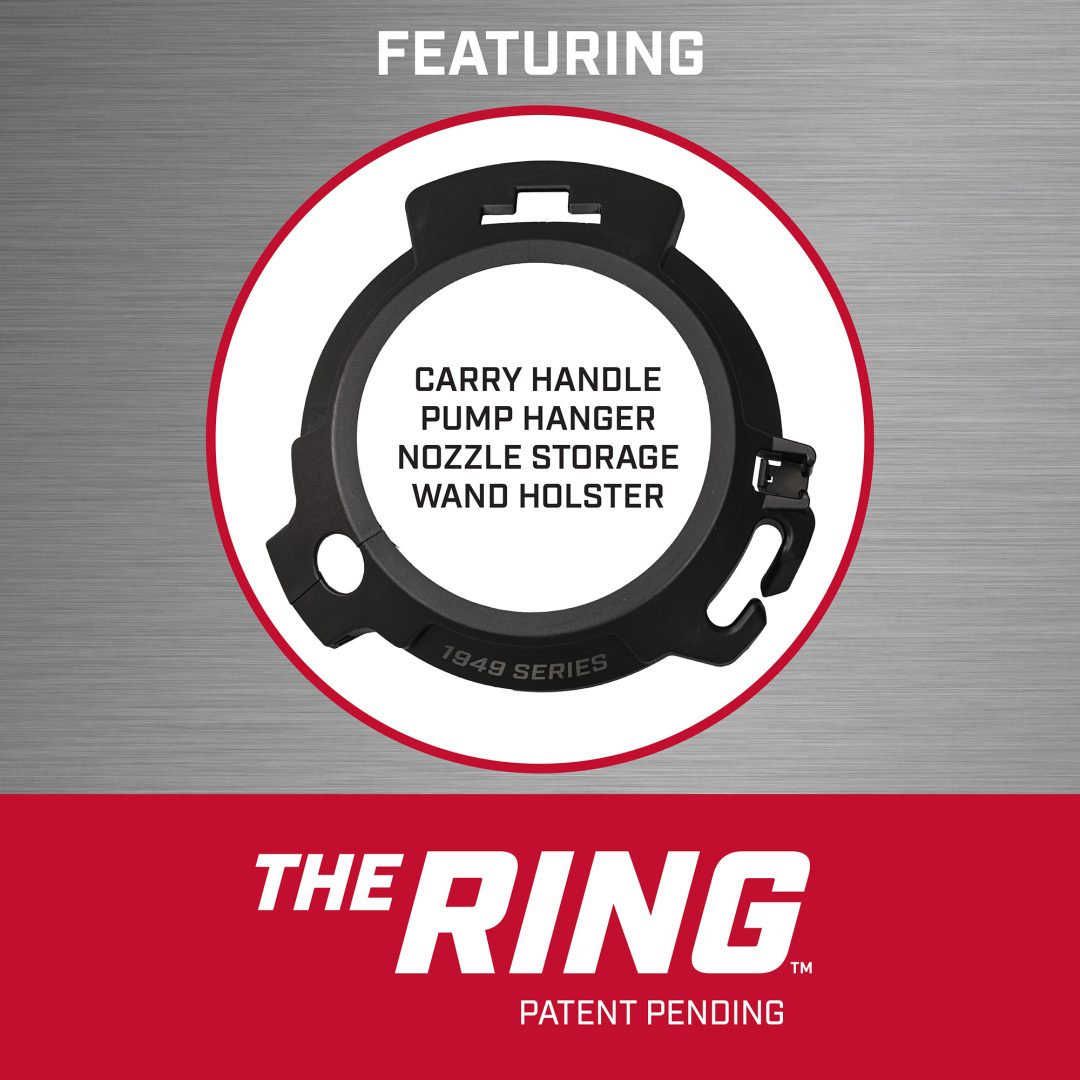

Multi-purpose ring incorporates a carry handle, pump holder, wand and nozzle storage

Details and features

Chapin 1949X 3.5 Gallon Xtreme™ Concrete Pump Sprayer

Trusted by concrete professionals, the 1949X handles corrosive chemicals used in industrial concrete applications like form oils, curing compounds, and cleaners because of its Xtreme seals. The 3.5-gallon steel tank is protected by Chapin’s Tri-Poxy™ coating to prevent damage from rust, corrosion, and dents. It’s also compatible with up to 30% Acetone. The added multi-purpose ring around the tank opening incorporates a carry handle, pump holder, and wand and nozzle storage, all while protecting the top of the can. Components include a metal Tri-Lock™ handle chemical-resistant brass fan-top nozzle, 24-inch brass spray wand, and brass lock-off shut-off valve with a 48-inch reinforced hose. Proudly made in America and backed by Chapin’s 2-year limited warranty.

Xtreme™ seals and gaskets are resistant to extreme chemicals and concentrations of Acetone, VOC compliant sealer applications used in industrial and concrete applications like concrete sealing, curing and form oil solutions

3.5-gallon Tri-Poxy™ steel metal tank, Tri-Poxy™ provides triple protection against rust, corrosion and damage from denting

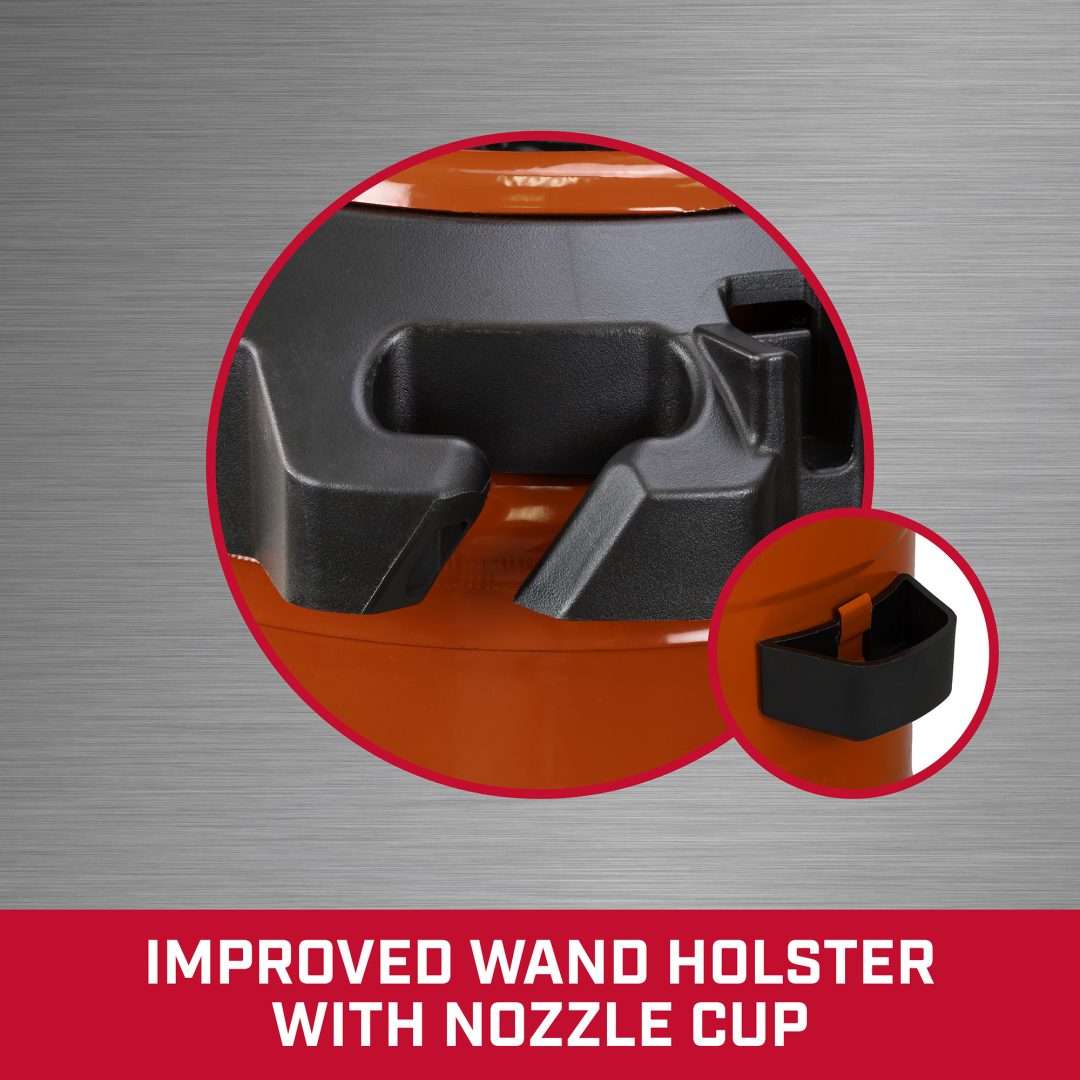

Multi-purpose ring incorporates a carry handle, pump holder, wand and nozzle storage while protecting the top of the can

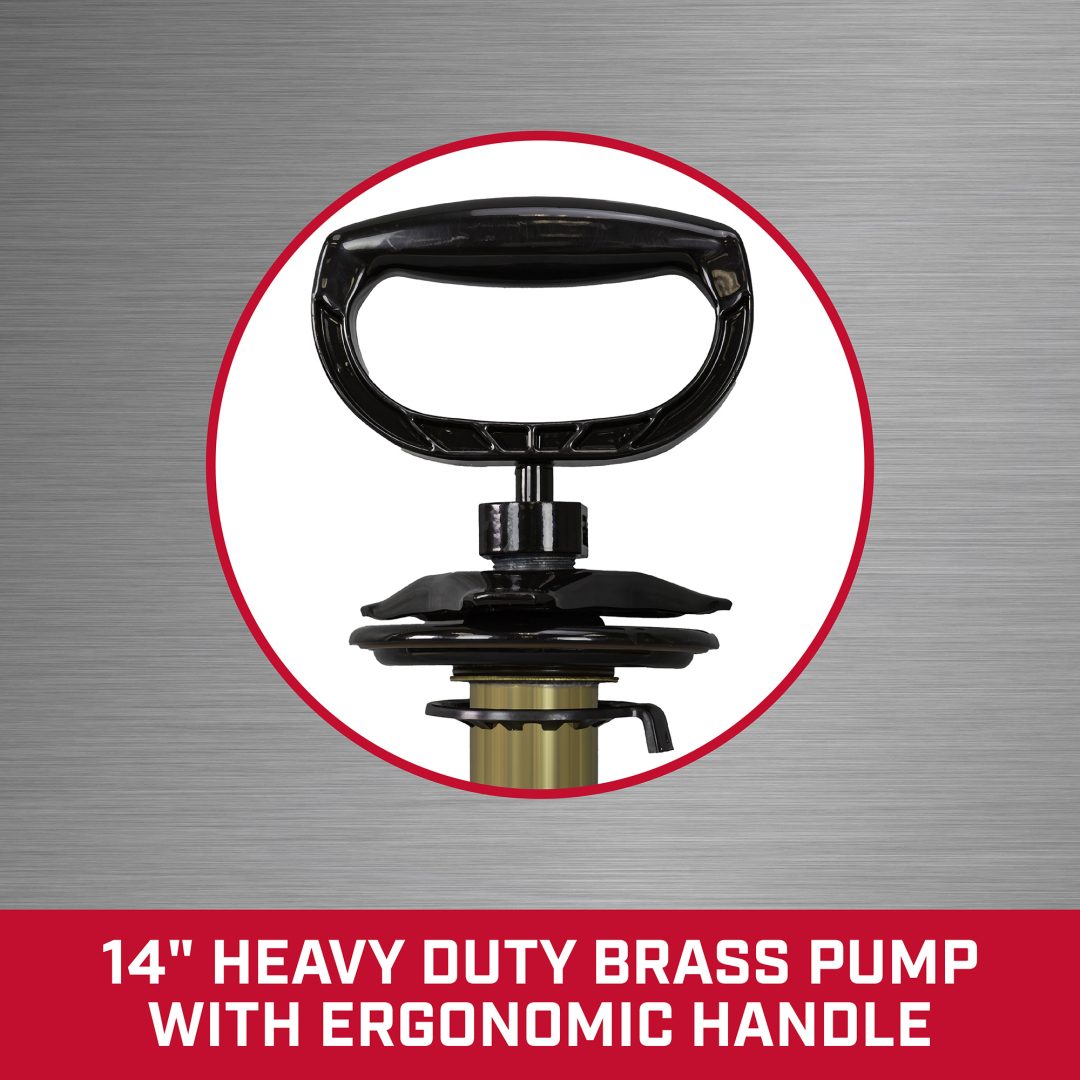

Ergonomic metal Tri-Lock™ handle tightly seals the heavy-duty brass pump

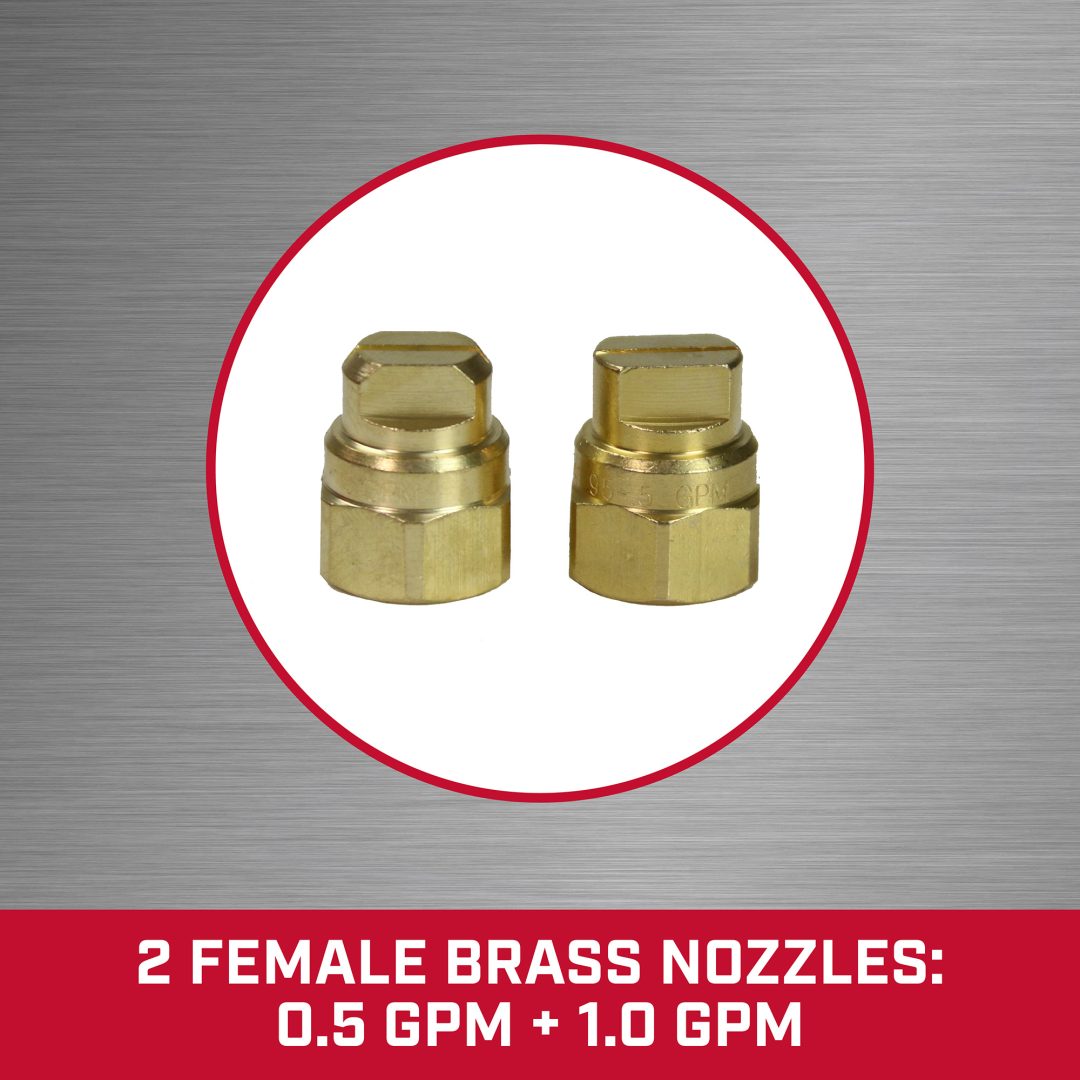

Components include chemical-resistant brass fan-top nozzle, 24-inch brass spray wand, and brass lock-off shut-off valve with a 48-inch reinforced hose

Large 4" tank opening for easy filling and cleaning

Sprays up to 30-35% solids Made in the USA with global materials and backed by US-based customer service and technical support

Backed by Chapin’s 2-year limited warranty

Specification

Chapin 1949X 3.5 Gallon Xtreme™ Concrete Pump Sprayer

Trusted by concrete professionals, the 1949X handles corrosive chemicals used in industrial concrete applications like form oils, curing compounds, and cleaners because of its Xtreme seals. The 3.5-gallon steel tank is protected by Chapin’s Tri-Poxy™ coating to prevent damage from rust, corrosion, and dents. It’s also compatible with up to 30% Acetone. The added multi-purpose ring around the tank opening incorporates a carry handle, pump holder, and wand and nozzle storage, all while protecting the top of the can. Components include a metal Tri-Lock™ handle chemical-resistant brass fan-top nozzle, 24-inch brass spray wand, and brass lock-off shut-off valve with a 48-inch reinforced hose. Proudly made in America and backed by Chapin’s 2-year limited warranty.

Model Number 19049
Warranty 2 year limited
Tank Size & Material 3.5 gallons, Tri-Poxy™ Steel
Seals & Filter Xtreme™ Chemical-resistant, No Filter
Nozzles Brass Fan
Handle Style Metal, Ergonomic Tri-Lock™
Shut-off Material & Lock-off Feature Brass, Yes-Lock-off Feature
Hose Length & Material 48 in, Reinforced
Wand Length & Material 24 in, Brass
Operating Pressure 40-60 PSI
Sprayer Rate 0.5-1.0 GPM
Video for

Chapin 1949X 3.5 Gallon Xtreme™ Concrete Pump Sprayer

Trusted by concrete professionals, the 1949X handles corrosive chemicals used in industrial concrete applications like form oils, curing compounds, and cleaners because of its Xtreme seals. The 3.5-gallon steel tank is protected by Chapin’s Tri-Poxy™ coating to prevent damage from rust, corrosion, and dents. It’s also compatible with up to 30% Acetone. The added multi-purpose ring around the tank opening incorporates a carry handle, pump holder, and wand and nozzle storage, all while protecting the top of the can. Components include a metal Tri-Lock™ handle chemical-resistant brass fan-top nozzle, 24-inch brass spray wand, and brass lock-off shut-off valve with a 48-inch reinforced hose. Proudly made in America and backed by Chapin’s 2-year limited warranty.

Downloads

Chapin 1949X 3.5 Gallon Xtreme™ Concrete Pump Sprayer

Trusted by concrete professionals, the 1949X handles corrosive chemicals used in industrial concrete applications like form oils, curing compounds, and cleaners because of its Xtreme seals. The 3.5-gallon steel tank is protected by Chapin’s Tri-Poxy™ coating to prevent damage from rust, corrosion, and dents. It’s also compatible with up to 30% Acetone. The added multi-purpose ring around the tank opening incorporates a carry handle, pump holder, and wand and nozzle storage, all while protecting the top of the can. Components include a metal Tri-Lock™ handle chemical-resistant brass fan-top nozzle, 24-inch brass spray wand, and brass lock-off shut-off valve with a 48-inch reinforced hose. Proudly made in America and backed by Chapin’s 2-year limited warranty.

Product Manual

Download
Safety & Usage for

Chapin 1949X 3.5 Gallon Xtreme™ Concrete Pump Sprayer

Trusted by concrete professionals, the 1949X handles corrosive chemicals used in industrial concrete applications like form oils, curing compounds, and cleaners because of its Xtreme seals. The 3.5-gallon steel tank is protected by Chapin’s Tri-Poxy™ coating to prevent damage from rust, corrosion, and dents. It’s also compatible with up to 30% Acetone. The added multi-purpose ring around the tank opening incorporates a carry handle, pump holder, and wand and nozzle storage, all while protecting the top of the can. Components include a metal Tri-Lock™ handle chemical-resistant brass fan-top nozzle, 24-inch brass spray wand, and brass lock-off shut-off valve with a 48-inch reinforced hose. Proudly made in America and backed by Chapin’s 2-year limited warranty.

  • Spray distance is dependent on many factors such as adjusted nozzle orifice size, tank pressure, wind interference and angle of inclination. Spray distances may vary based on user’s specific application.
  • Multiple chemicals in one sprayer can cause cross contamination, even if you clean your sprayer after each use.
  • Do not store chemicals in your sprayer when not in use
  • Always wear eye protection. Do not spray during windy conditions. Clean sprayer thoroughly after each use. Before using read and understand chemical manufacturer’s instructions and warnings as well as those above. FAILURE TO HEED ALL SAFETY WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS BODILY INJURY OR PROPERTY DAMAGE.
