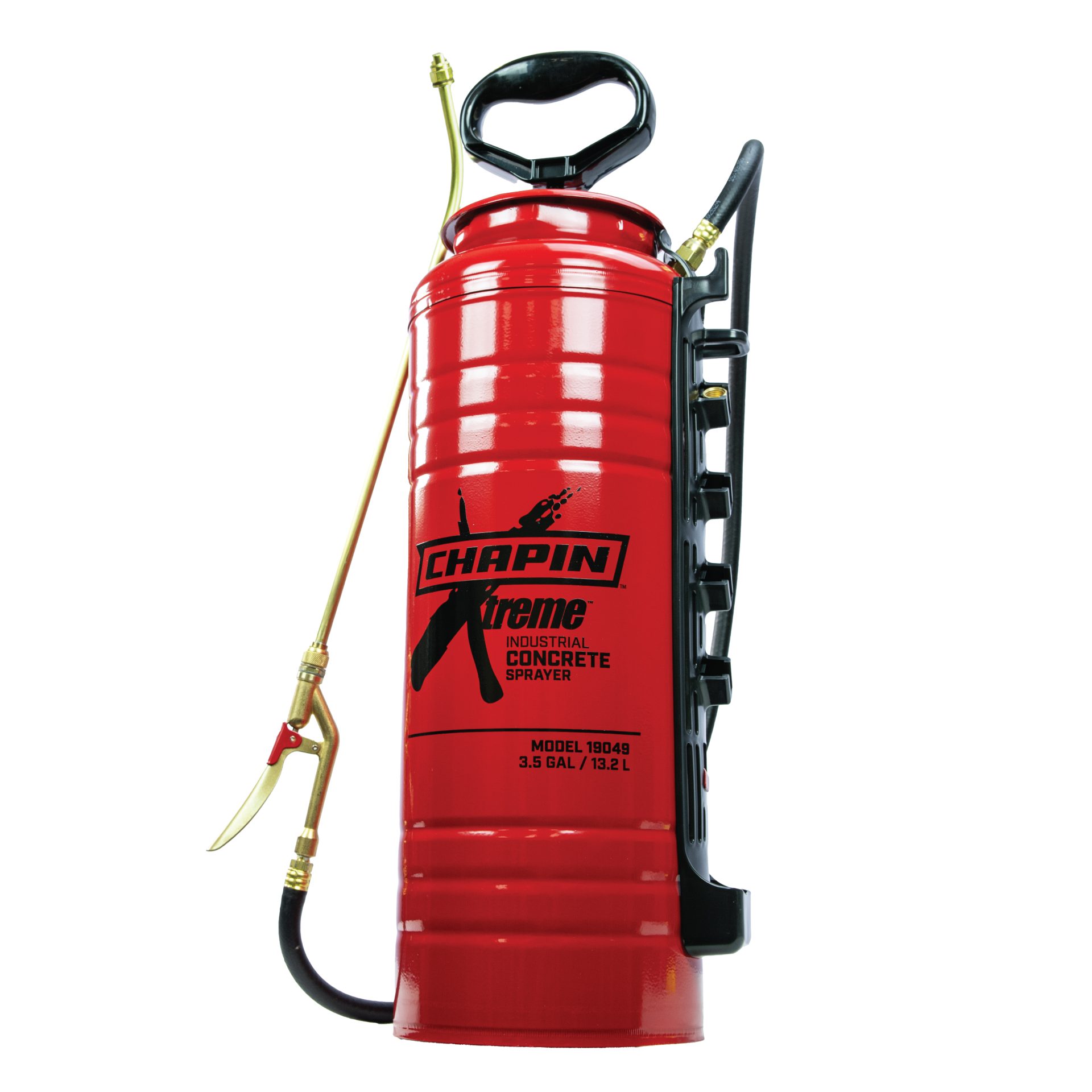

Chapin 19049 Industrial Concrete Sprayer

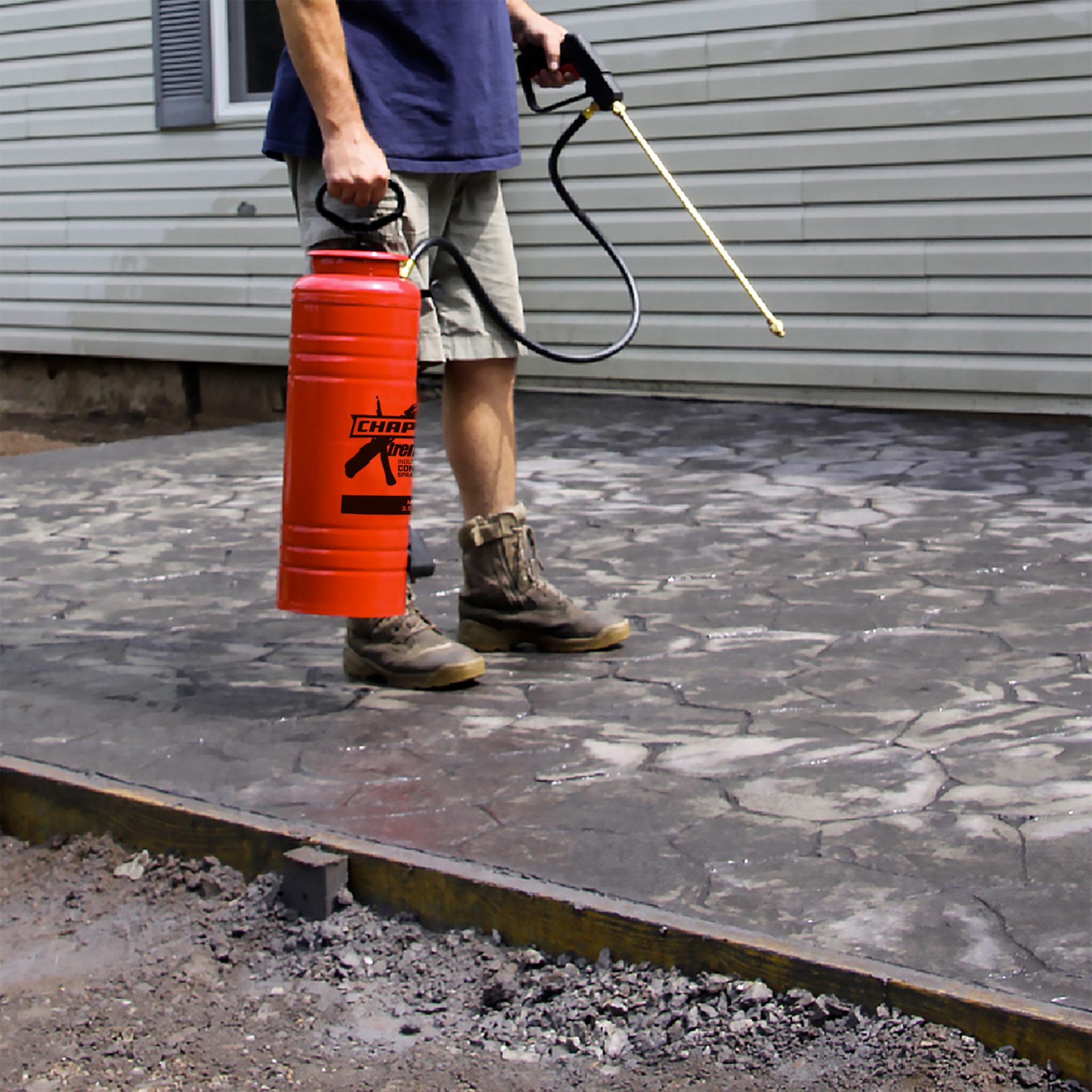

Chapin Xtreme concrete sprayer spraying decorative concrete

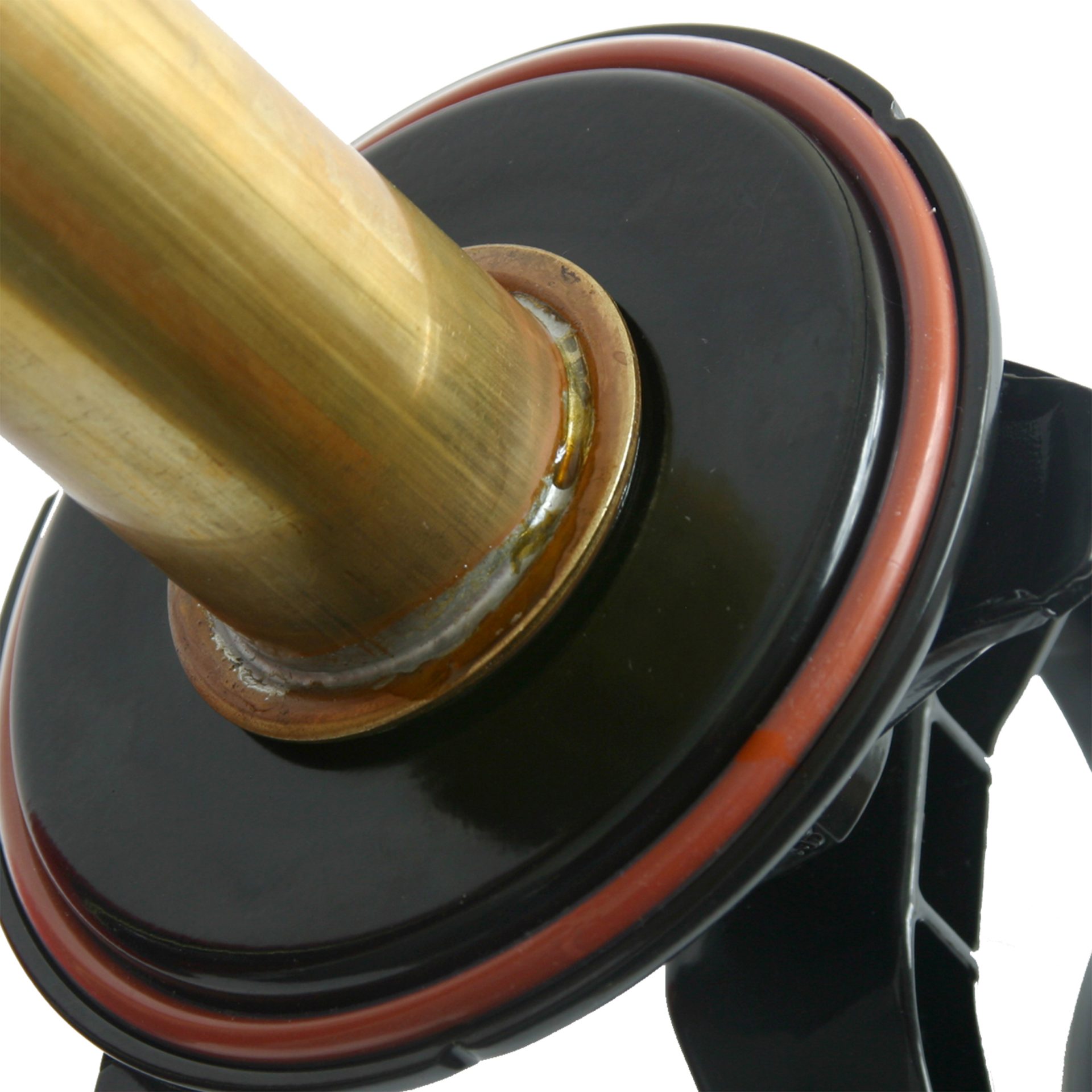

Chapin 19049 Xtreme Industrial Concrete Sprayer pump seals

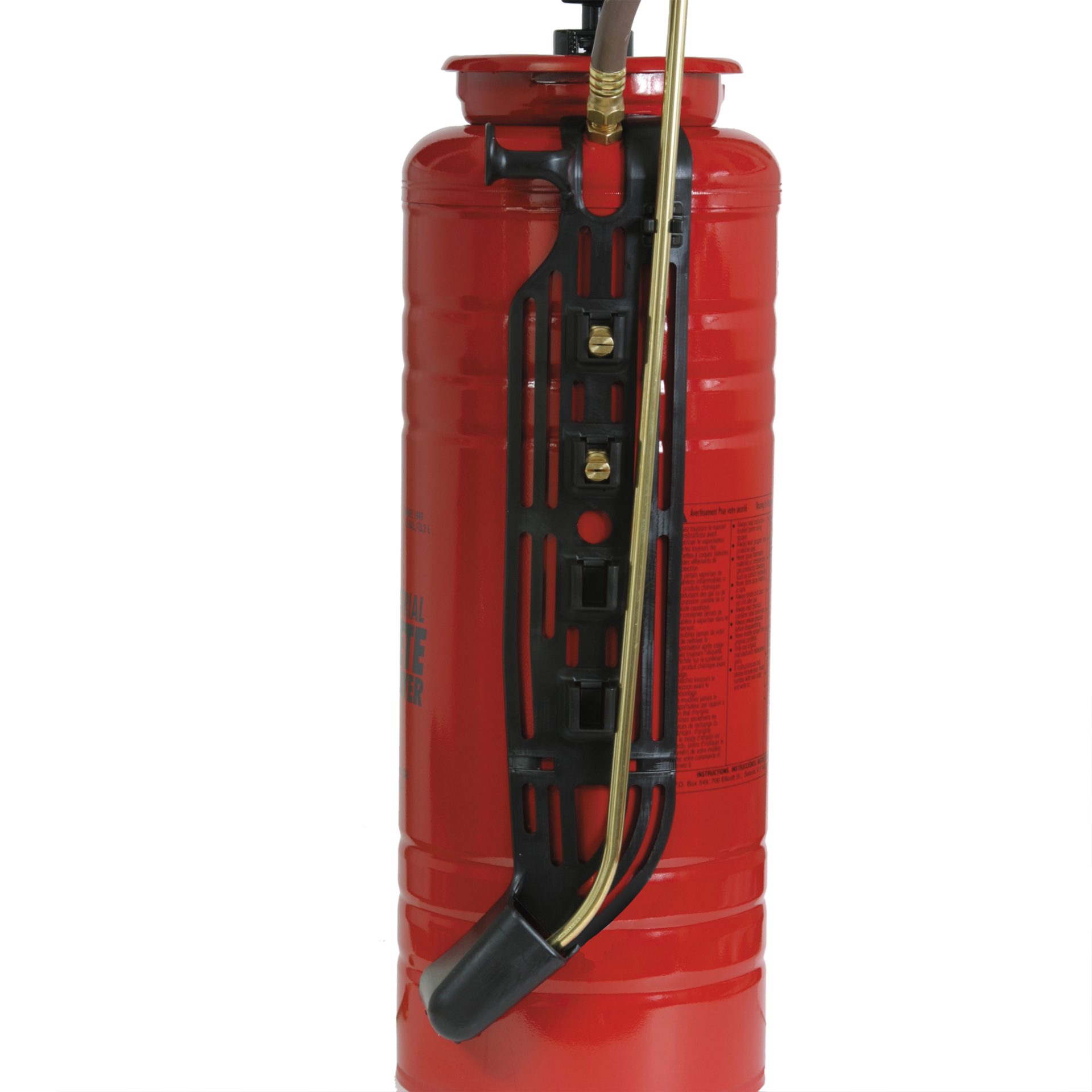

Chapin 19049 Xtreme Industrial Concrete Sprayer holster

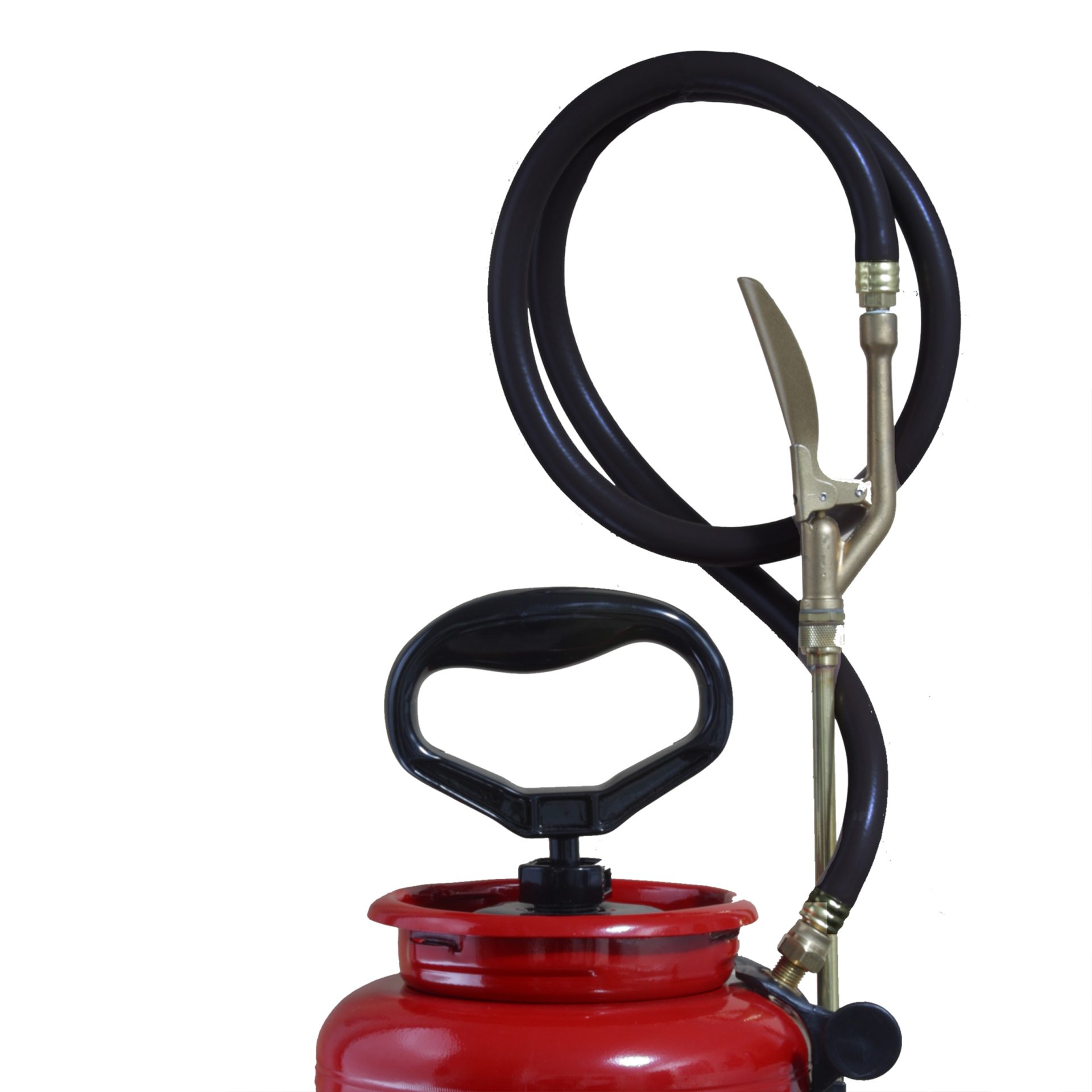

Chapin 19049 Xtreme Industrial Concrete Sprayer pump handle and hose
Chapin 19049 Industrial Concrete Sprayer
Chapin Xtreme concrete sprayer spraying decorative concrete
Chapin 19049 Xtreme Industrial Concrete Sprayer pump seals
Chapin 19049 Xtreme Industrial Concrete Sprayer holster
Chapin 19049 Xtreme Industrial Concrete Sprayer pump handle and hose

Chapin 19049 Professional 3.5 Gallon Xtreme™ Industrial Concrete Open Head Pump Sprayer

The Chapin 19049 3.5-gallon Xtreme™ Tri-Poxy concrete sprayer is designed for the tough concrete and industrial applications. Use the 19049 for the harsh chemicals when applying form oils, stains, and other industrial tasks.

19049

Xtreme seals and gaskets: seals and gaskets handle form oils, concrete sealants and general construction

3.5 gallon Tri-Poxy steel metal tank, Tri-Poxy provides triple protection against rust, corrosion and damage from denting

Tri-Lock metal pump handle locks in place to tightly seal the pump

Buy now
Retailers
Details and features

Chapin 19049 Professional 3.5 Gallon Xtreme™ Industrial Concrete Open Head Pump Sprayer

The Chapin 19049 3.5-gallon Xtreme™ Tri-Poxy concrete sprayer is designed with chemical-resistant seals to handle VOC compliant sealer applications up to 50% - 55% acetone. It’s made for the really tough concrete and industrial applications. Use the 19049 for the harsh chemicals when applying form oils, stains, and other industrial tasks.

Featuring the Tri-Poxy tank is triple-layered to resist dents, corrosion, and rust, while the wide-mouth opening ensures easy filling and cleaning. The sprayer has a solid brass pump barrel, brass spray nozzle and shut-off, a 24-inch brass extension wand, and a 48-inch reinforced hose. Made in the USA with global materials and backed by Chapin’s 2-year limited warranty. Keep this sprayer handy for the tough jobs on a construction site.

Applications

Concrete Construction, Decorative Concrete & Hardscapes

Xtreme seals and gaskets: seals and gaskets handle VOC compliant sealer applications up to 40% - 55% acetone used in industrial and concrete applications: form oils, concrete sealants and general construction

3.5 gallon Tri-Poxy steel metal tank, Tri-Poxy provides triple protection against rust, corrosion and damage from denting

4 inch tank opening for easy filling and cleaning

Tri-Lock metal pump handle locks in place to tightly seal the pump

Components include chemical-resistant brass fan nozzle, 24 inch brass spray wand, and brass lock-on shut-off valve with a 48 inch reinforced hose

Made in the USA with global materials and backed by US-based customer service and technical support

Backed by Chapin’s 2-year limited warranty

Related Parts

Chapin 19049 Professional 3.5 Gallon Xtreme™ Industrial Concrete Open Head Pump Sprayer

The Chapin 19049 3.5-gallon Xtreme™ Tri-Poxy concrete sprayer is designed with chemical-resistant seals to handle VOC compliant sealer applications up to 50% - 55% acetone. It’s made for the really tough concrete and industrial applications. Use the 19049 for the harsh chemicals when applying form oils, stains, and other industrial tasks.

Featuring the Tri-Poxy tank is triple-layered to resist dents, corrosion, and rust, while the wide-mouth opening ensures easy filling and cleaning. The sprayer has a solid brass pump barrel, brass spray nozzle and shut-off, a 24-inch brass extension wand, and a 48-inch reinforced hose. Made in the USA with global materials and backed by Chapin’s 2-year limited warranty. Keep this sprayer handy for the tough jobs on a construction site.

Additional Replacement Parts Available:

Pump Assembly 6-4612
Extension Assembly 6-7705
Hose Assembly 6-6092
Shut-off Assembly 6-5380
Nozzle Assembly (1 GPM) 6-5943
Outlet Tube 6-5859-3
Holster 6-5373
Repair Kit 6-4646

Please check your local retailer, or call our Order Team (1-800-444-3140), to check availability and purchase.

Chapin 6-5797 Industrial Female Brass Fan Nozzle

Chapin 6-5797 Industrial 0.5 GPM – 95° Angle Female Brass Fan Nozzle

Chapin’s 6-5797 female brass fan nozzle sprays at 95 degrees and fits male connections. It...
Discover
Specification

Chapin 19049 Professional 3.5 Gallon Xtreme™ Industrial Concrete Open Head Pump Sprayer

The Chapin 19049 3.5-gallon Xtreme™ Tri-Poxy concrete sprayer is designed with chemical-resistant seals to handle VOC compliant sealer applications up to 50% – 55% acetone. It’s made for the really tough concrete and industrial applications. Use the 19049 for the harsh chemicals when applying form oils, stains, and other industrial tasks.

Featuring the Tri-Poxy tank is triple-layered to resist dents, corrosion, and rust, while the wide-mouth opening ensures easy filling and cleaning. The sprayer has a solid brass pump barrel, brass spray nozzle and shut-off, a 24-inch brass extension wand, and a 48-inch reinforced hose. Made in the USA with global materials and backed by Chapin’s 2-year limited warranty. Keep this sprayer handy for the tough jobs on a construction site.

Model Number 19049
Product Category Xtreme Industrial Sprayers
Applications Concrete Construction, Decorative Concrete & Hardscapes
Warranty 2 year limited
Country of Origin United States
Dimensions (LxWxH) 8.75x8.75x27.5
Weight 11.25 pounds
Assembly Required Yes
Tank Size 3.5 gallons
Tank Material Tri-Poxy Steel
Pump Type Piston
Seals Xtreme Chemical-resistant
Nozzle Material Brass
Nozzle Patterns Fan
Nozzle Included Yes
Number of Nozzles 1
Filter None
Lock-on Feature Yes
Shut-off Material Brass
Hose Length 48 inches
Hose Material Reinforced
Wand Length 24 inches
Wand Material Brass
Operating Pressure 40-60 PSI
Sprayer Rate 0.5-1.0 GPM
Handle Ergonomic Tri-Lock
Handle Material Metal
Downloads

Chapin 19049 Professional 3.5 Gallon Xtreme™ Industrial Concrete Open Head Pump Sprayer

The Chapin 19049 3.5-gallon Xtreme™ Tri-Poxy concrete sprayer is designed with chemical-resistant seals to handle VOC compliant sealer applications up to 50% – 55% acetone. It’s made for the really tough concrete and industrial applications. Use the 19049 for the harsh chemicals when applying form oils, stains, and other industrial tasks.

Featuring the Tri-Poxy tank is triple-layered to resist dents, corrosion, and rust, while the wide-mouth opening ensures easy filling and cleaning. The sprayer has a solid brass pump barrel, brass spray nozzle and shut-off, a 24-inch brass extension wand, and a 48-inch reinforced hose. Made in the USA with global materials and backed by Chapin’s 2-year limited warranty. Keep this sprayer handy for the tough jobs on a construction site.

Chapin 19049 Xtreme Industrial Concrete Sprayer Product Manual

Download
Safety & Usage for

Chapin 19049 Professional 3.5 Gallon Xtreme™ Industrial Concrete Open Head Pump Sprayer

The Chapin 19049 3.5-gallon Xtreme™ Tri-Poxy concrete sprayer is designed with chemical-resistant seals to handle VOC compliant sealer applications up to 50% – 55% acetone. It’s made for the really tough concrete and industrial applications. Use the 19049 for the harsh chemicals when applying form oils, stains, and other industrial tasks.

Featuring the Tri-Poxy tank is triple-layered to resist dents, corrosion, and rust, while the wide-mouth opening ensures easy filling and cleaning. The sprayer has a solid brass pump barrel, brass spray nozzle and shut-off, a 24-inch brass extension wand, and a 48-inch reinforced hose. Made in the USA with global materials and backed by Chapin’s 2-year limited warranty. Keep this sprayer handy for the tough jobs on a construction site.

  • Spray distance is dependent on many factors such as adjusted nozzle orifice size, tank pressure, wind interference and angle of inclination. Spray distances may vary based on user’s specific application.
  • Multiple chemicals in one sprayer can cause cross contamination, even if you clean your sprayer after each use.
  • Do not store chemicals in your sprayer when not in use
  • Always wear eye protection. Do not spray during windy conditions. Clean sprayer thoroughly after each use. Before using read and understand chemical manufacturer’s instructions and warnings as well as those above. FAILURE TO HEED ALL SAFETY WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS BODILY INJURY OR PROPERTY DAMAGE.
